WEG  |  SKU: EMN-018997

OF000404W01DOE, Rolled Steel Premium Efficiency 1Hp 1760 Rpm 4P 56 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

$299.56
shipping

Estimate shipping

Description

OF000404W01DOE,  Rolled Steel Premium Efficiency 1Hp 1760 Rpm 4P 56 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

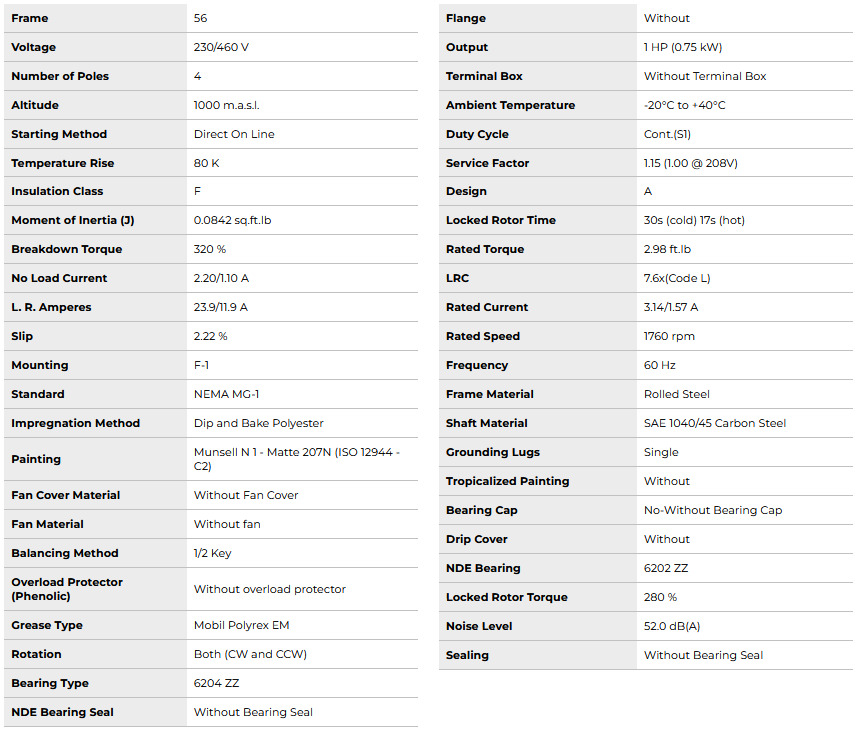

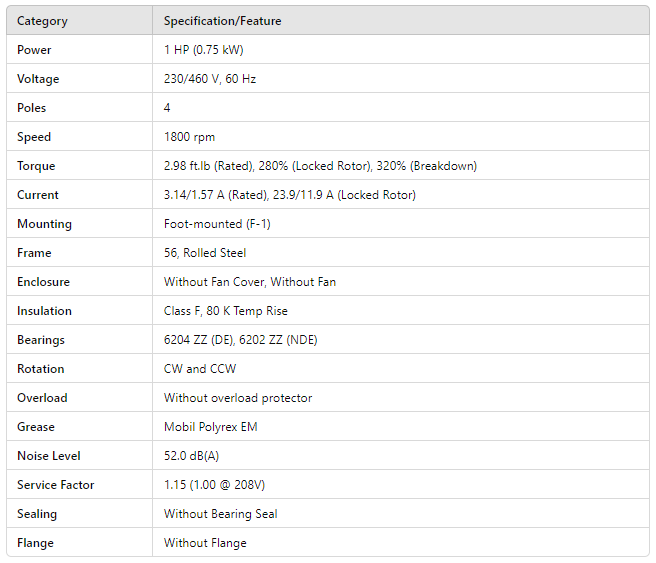

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 2.98 ft.lb (Rated), 280% (Locked Rotor), 320% (Breakdown)
Current 3.14/1.57 A (Rated), 23.9/11.9 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange Without Flange
