WEG  |  SKU: EMN-019060

OC000504W01DOE, Rolled Steel Premium Efficiency 1Hp 1760 Rpm 4P 56C 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$318.16
shipping

Estimate shipping

Description

OC000504W01DOE,  Rolled Steel Premium Efficiency 1Hp 1760 Rpm 4P 56C 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

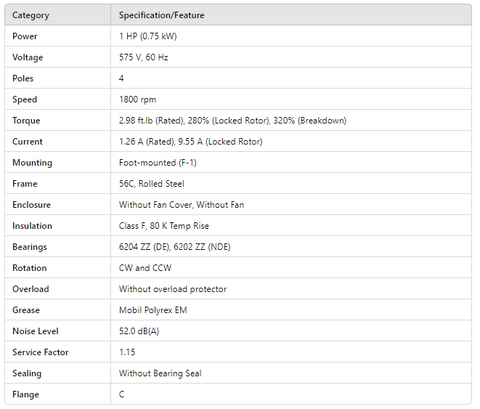

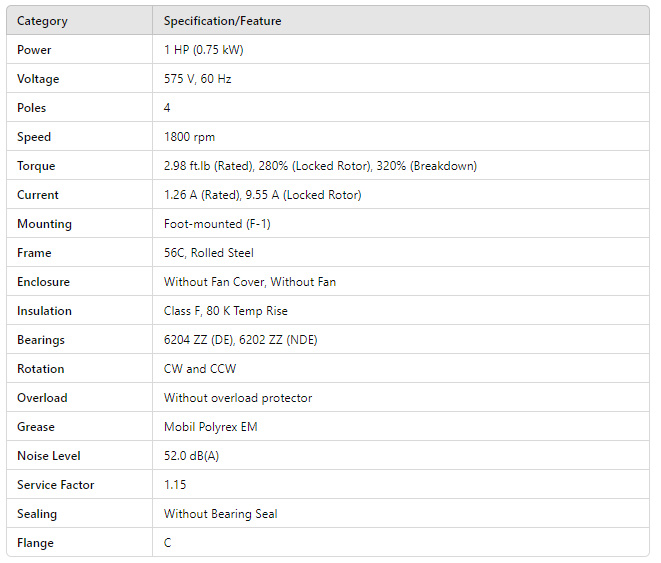

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 2.98 ft.lb (Rated), 280% (Locked Rotor), 320% (Breakdown)
Current 1.26 A (Rated), 9.55 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange C
