WEG  |  SKU: EMN-018980

OC.33104W01DOE, Rolled Steel 0.33Hp 1745 Rpm 4P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

$284.35
shipping

Estimate shipping

Description

OC.33104W01DOE,  Rolled Steel 0.33Hp 1745 Rpm 4P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

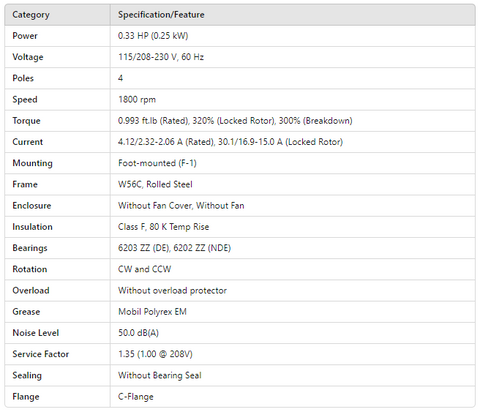

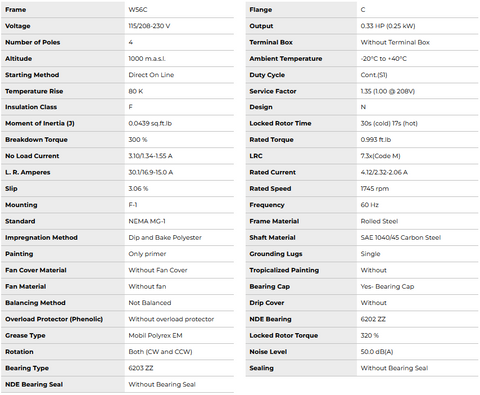

Category Specification/Feature
Power 0.33 HP (0.25 kW)
Voltage 115/208-230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 0.993 ft.lb (Rated), 320% (Locked Rotor), 300% (Breakdown)
Current 4.12/2.32-2.06 A (Rated), 30.1/16.9-15.0 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame W56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 50.0 dB(A)
Service Factor 1.35 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange C-Flange
