BROWNING  |  SKU: EMN-007586

MVL44, Maska, Adjustable Pulleys, O.D 4.15'', 1VL44, BROWNING, MULTI BORE I.D

$46.69
shipping

Estimate shipping

Description

MVL44, MASKA, 1VL44 BROWNING,

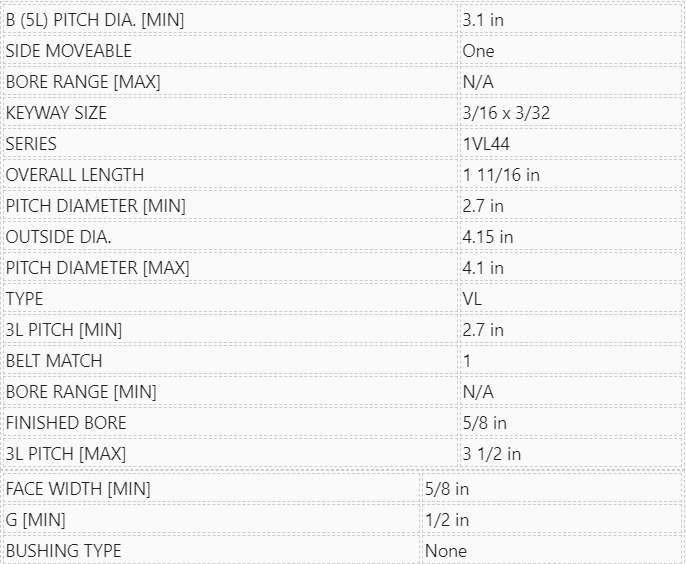

SPECIFICATIONS

B (5L) PITCH DIA. [MIN] 3.1 in
SIDE MOVEABLE One
BORE RANGE [MAX] N/A
KEYWAY SIZE 3/16 x 3/32
SERIES 1VL44
OVERALL LENGTH 1 11/16 in
PITCH DIAMETER [MIN] 2.7 in
OUTSIDE DIA. 4.15 in
PITCH DIAMETER [MAX] 4.1 in
TYPE VL
3L PITCH [MIN] 2.7 in
BELT MATCH 1
BORE RANGE [MIN] N/A
FINISHED BORE 5/8 in
3L PITCH [MAX] 3 1/2 in
FACE WIDTH [MIN] 5/8 in
G [MIN] 1/2 in
BUSHING TYPE None

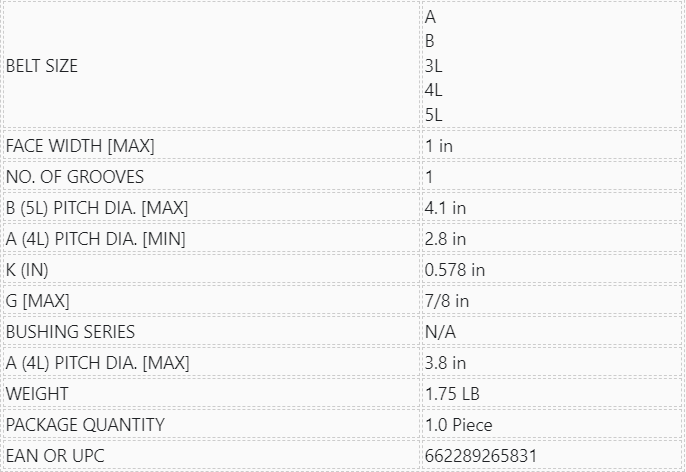

BELT SIZE A
B
3L
4L
5L
FACE WIDTH [MAX] 1 in
NO. OF GROOVES 1
B (5L) PITCH DIA. [MAX] 4.1 in
A (4L) PITCH DIA. [MIN] 2.8 in
K (IN) 0.578 in
G [MAX] 7/8 in
BUSHING SERIES N/A
A (4L) PITCH DIA. [MAX] 3.8 in
WEIGHT 1.75 LB
PACKAGE QUANTITY 1.0 Piece
EAN OR UPC 662289265831
