DELTA ELECTRONICS  |  SKU: EMN-018584

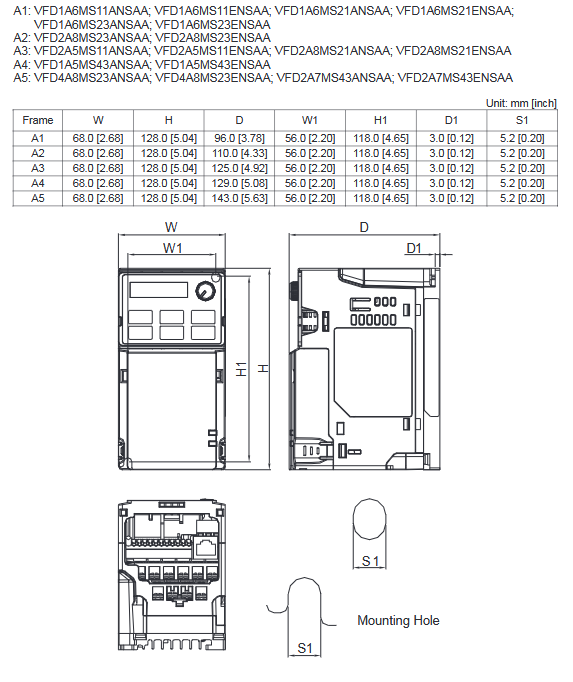

MS-VFD2A8MS21MFSAA, (MS300) 1/2Hp (HD2.88A) / 3/4Hp (ND 3.84A)), 1 Ø 230VAC, 0-599.0Hz (op), (V/Hz, SVC, PM), c/w EMI filter, IP66, Frame A1

$1,124.65
shipping

Estimate shipping

Description

MS-VFD2A8MS21MFSAA, (MS300) 1/2Hp (HD2.88A) / 3/4Hp (ND 3.84A)), 1 Ø 230VAC, 0-599.0Hz (op), (V/Hz, SVC, PM), c/w EMI filter, IP66, Frame A1

Table 1: General Features
Category Details
Control Methods - Volt/Hertz, Sensorless Vector
Motor Compatibility - Induction Motors (IM)
- Interior Permanent Magnet Motors (IPM)
- Surface Permanent Magnet Motors (SPM)
Ratings - Heavy Duty and Normal Duty rated
Design - Compact design saves 40% space compared to existing models
Voltage Options - 115Vac 1-phase input, 230Vac 3-phase output (HD 1/4 ~ 1HP)
- 230Vac 1-phase input, 230Vac 3-phase output (HD 1/4 ~ 3HP)
- 230Vac 3-phase input, 230Vac 3-phase output (HD 1/4 ~ 20HP)
- 460Vac 3-phase input, 460Vac 3-phase output (HD 1/4 ~ 30HP)
- 575Vac 3-phase input, 575Vac 3-phase output (HD 1 ~ 10HP)
Programmable Speed - 0 ~ 599Hz for high-speed applications
Starting Torque - 200% High Starting Torque
- Low-speed control: 0.5Hz (IM), 0.0Hz (PM)
Protection and Safety - IP 20, IP21 with optional conduit box
- Conformal coated circuit boards (IEC60721-3-3, class 3C2)
- Adaptable to 50°C environment
- RFI switch for IT mains
- Power removal safety (Safe Torque Off) for Emergency Stop
Energy and Braking - Deceleration Energy Back function
- Built-in dynamic braking transistors



Table 2: Advanced Features and Connectivity
Category Details
Application Macros - Compressor, Fan, Pump, Conveyor, Packaging, Textiles, Machine Tool
Built-In Functions - Realtime clock & calendar
- Built-in 2K step capacity PLC
- Adjustable output current (up to 120% of drive’s nominal capacity)
Quick Setup and Connections - Quick connect spring set control terminals
Inputs - 9 Digital Inputs (2 dedicated STO, 7 programmable, NPN/PNP configurable)
- 2 Analog Inputs (0 ~ 10V, -10 ~ +10V, 0 ~ 20mA, 4 ~ 20mA, PTC thermistor, RTD PT100)
Outputs - 1 Digital Output (dry contact: 1 NO, 1 NC)
- 2 Open collector transistors
- 1 Digital frequency output
- 1 Analog Output (programmable, 0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA)
Communication - Channel 1 USB
- Channel 2 RS-485 (RJ-45, SG+, SG-, SGND terminals)
- Resident Protocols: Modbus RTU & ASCII
- Optional Protocols: Profibus DP, DeviceNet, Modbus TCP, Ethernet/IP, CANopen
- 1 Option card slot (for communication cards)
