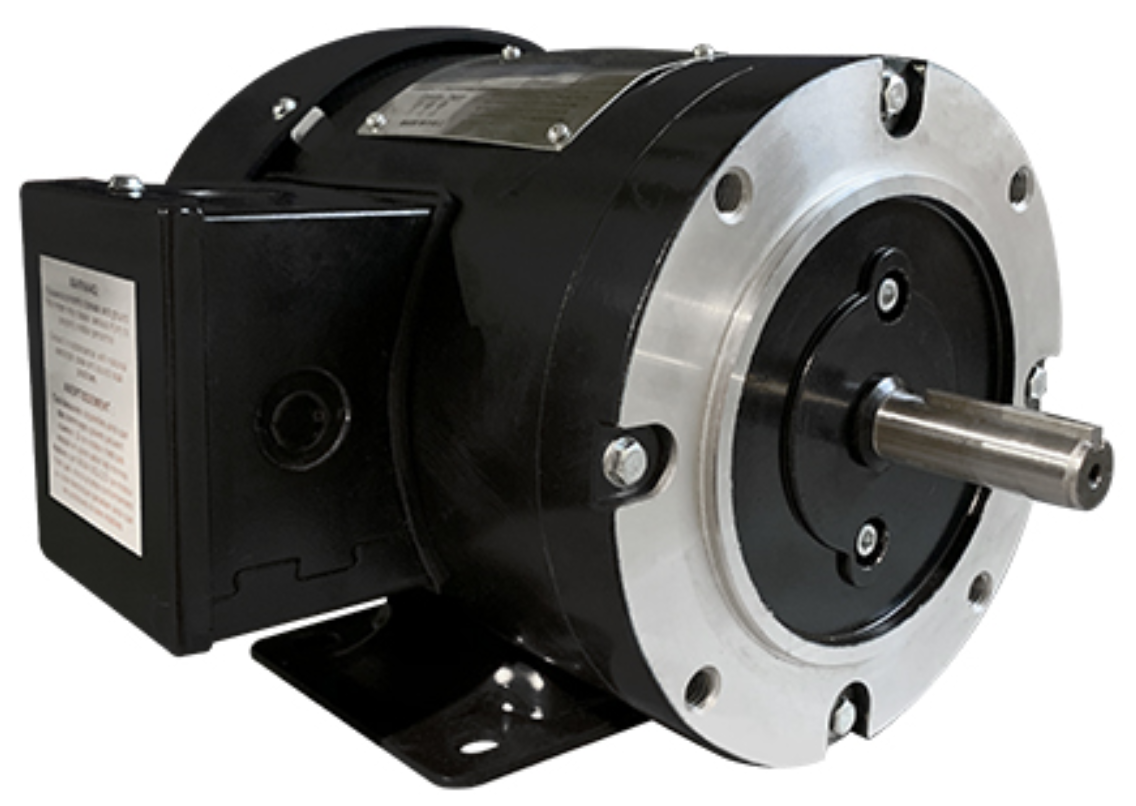

MQRP-104CH, 1Hp, 1752 Rpm, 208-230-460V, 3PH, 50-60Hz, TEFC, 56C, IP55, REMOVABLE BASE

MQRP-104CH, 1Hp, 1752 Rpm,  208-230-460V, 3PH, 50-60Hz, TEFC, 56C, IP55,  REMOVABLE BASE

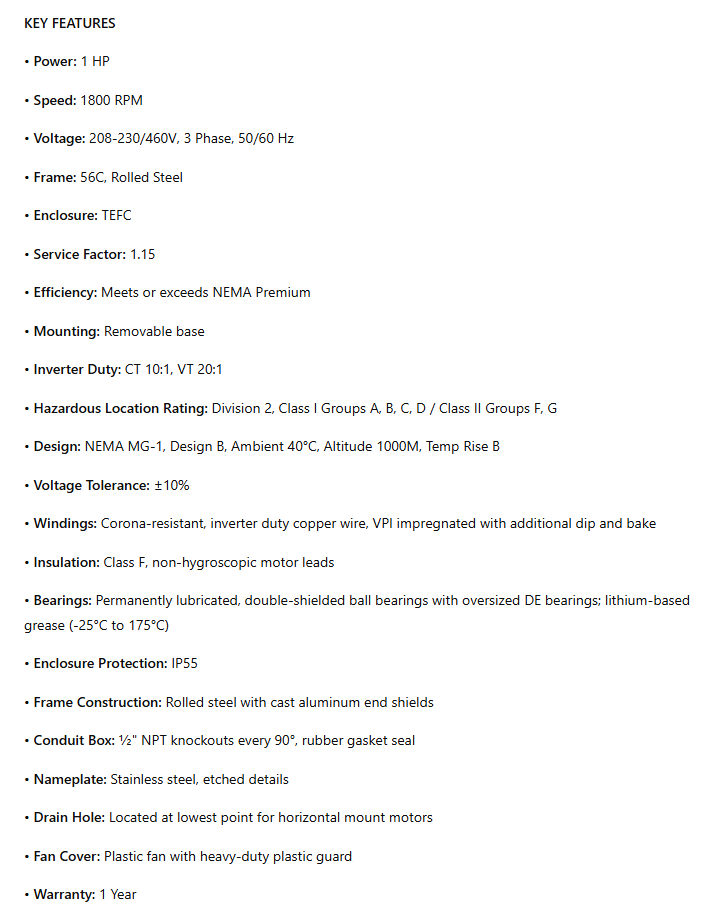

KEY FEATURES

• Power: 1 HP

• Speed: 1800 RPM

• Voltage: 208-230/460V, 3 Phase, 50/60 Hz

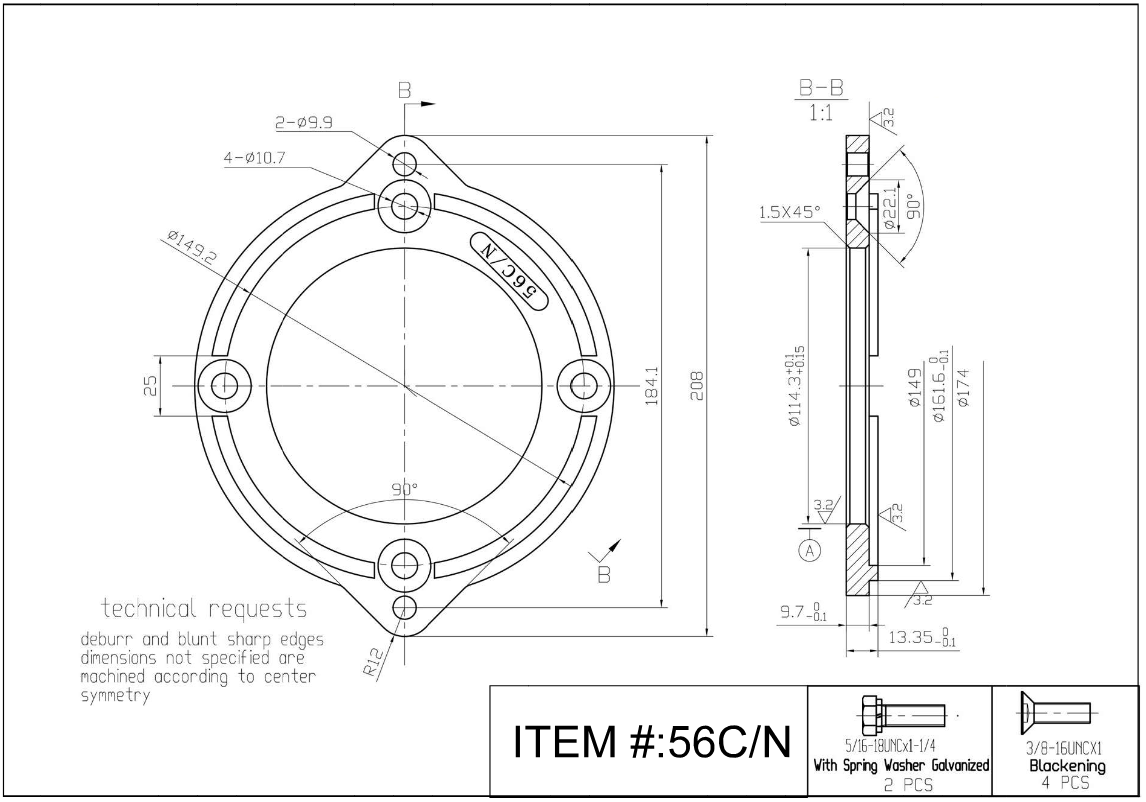

• Frame: 56C, Rolled Steel

• Enclosure: TEFC

• Service Factor: 1.15

• Efficiency: Meets or exceeds NEMA Premium

• Mounting: Removable base

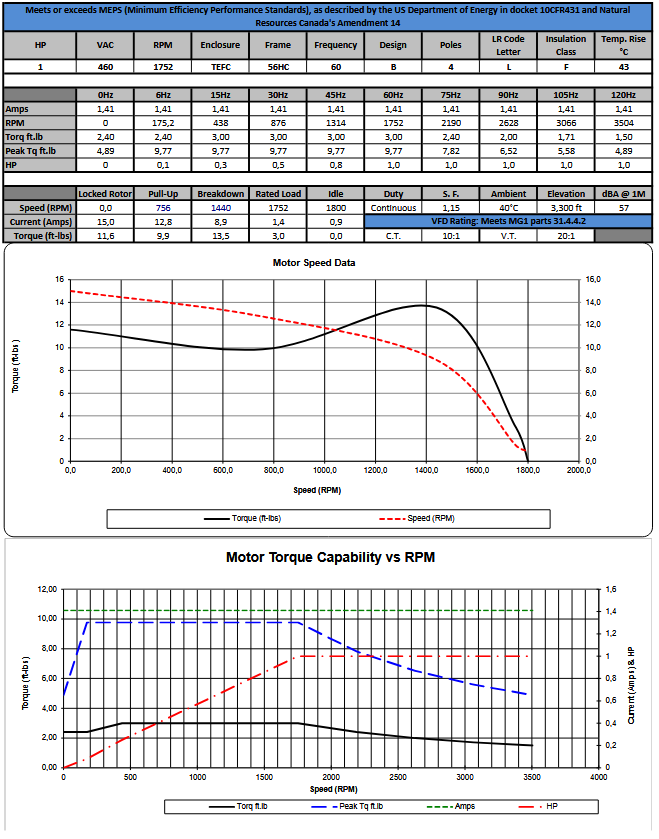

• Inverter Duty: CT 10:1, VT 20:1

• Hazardous Location Rating: Division 2, Class I Groups A, B, C, D / Class II Groups F, G

• Design: NEMA MG-1, Design B, Ambient 40°C, Altitude 1000M, Temp Rise B

• Voltage Tolerance: ±10%

• Windings: Corona-resistant, inverter duty copper wire, VPI impregnated with additional dip and bake

• Insulation: Class F, non-hygroscopic motor leads

• Bearings: Permanently lubricated, double-shielded ball bearings with oversized DE bearings; lithium-based grease (-25°C to 175°C)

• Enclosure Protection: IP55

• Frame Construction: Rolled steel with cast aluminum end shields

• Conduit Box: ½" NPT knockouts every 90°, rubber gasket seal

• Nameplate: Stainless steel, etched details

• Drain Hole: Located at lowest point for horizontal mount motors

• Fan Cover: Plastic fan with heavy-duty plastic guard

• Warranty: 1 Year
