WEG  |  SKU: EMN-019418

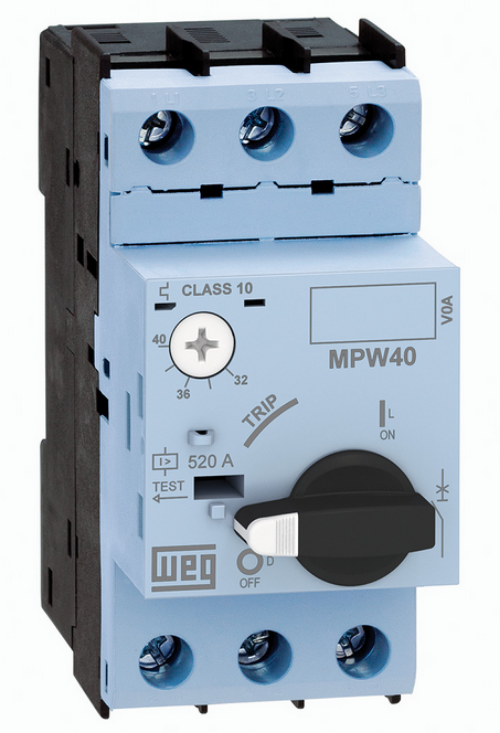

MPW40-3-U010, Motor-protective Circuit-breakers, 690V, IP20

$144.77
shipping

Estimate shipping

Description

MPW40-3-U010, Motor-protective Circuit-breakers, 690V, IP20

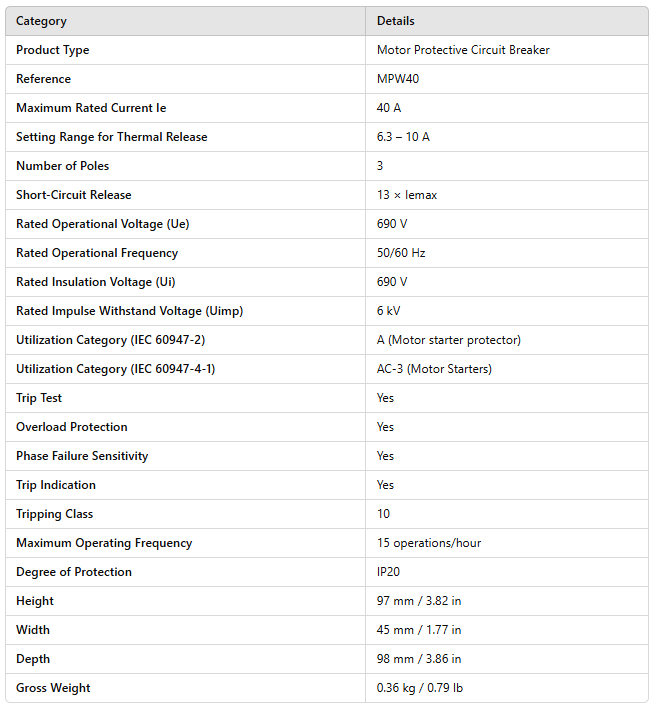

Category Details
Product Type Motor Protective Circuit Breaker
Reference MPW40
Maximum Rated Current Ie 40 A
Setting Range for Thermal Release 6.3 – 10 A
Number of Poles 3
Short-Circuit Release 13 × Iemax
Rated Operational Voltage (Ue) 690 V
Rated Operational Frequency 50/60 Hz
Rated Insulation Voltage (Ui) 690 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Utilization Category (IEC 60947-2) A (Motor starter protector)
Utilization Category (IEC 60947-4-1) AC-3 (Motor Starters)
Trip Test Yes
Overload Protection Yes
Phase Failure Sensitivity Yes
Trip Indication Yes
Tripping Class 10
Maximum Operating Frequency 15 operations/hour
Degree of Protection IP20

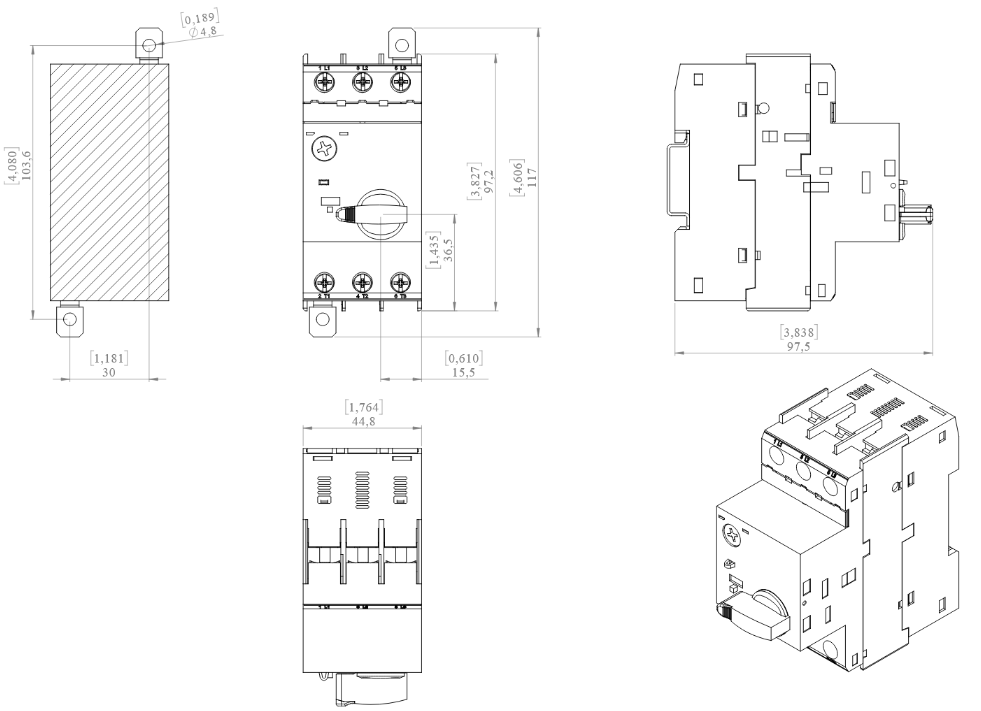

Height 97 mm / 3.82 in
Width 45 mm / 1.77 in
Depth 98 mm / 3.86 in
Gross Weight 0.36 kg / 0.79 lb
