LENZE  |  SKU: EMN-018528

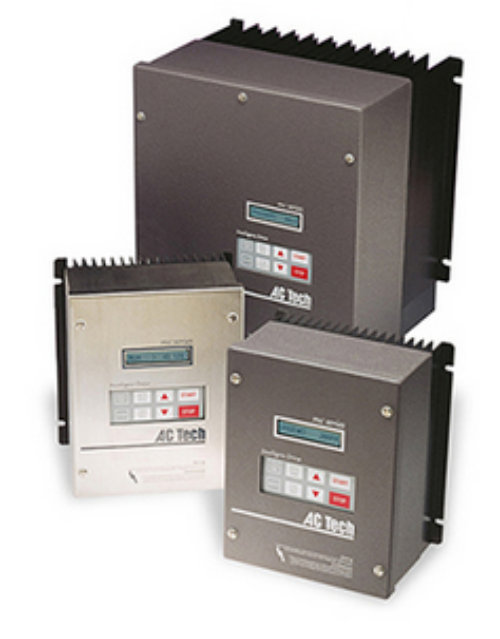

M15250B, MC1 25Hp 590V 3P N1

$10,465.17
shipping

Estimate shipping

Description

M15250B, MC1 25Hp 590V 3P N1

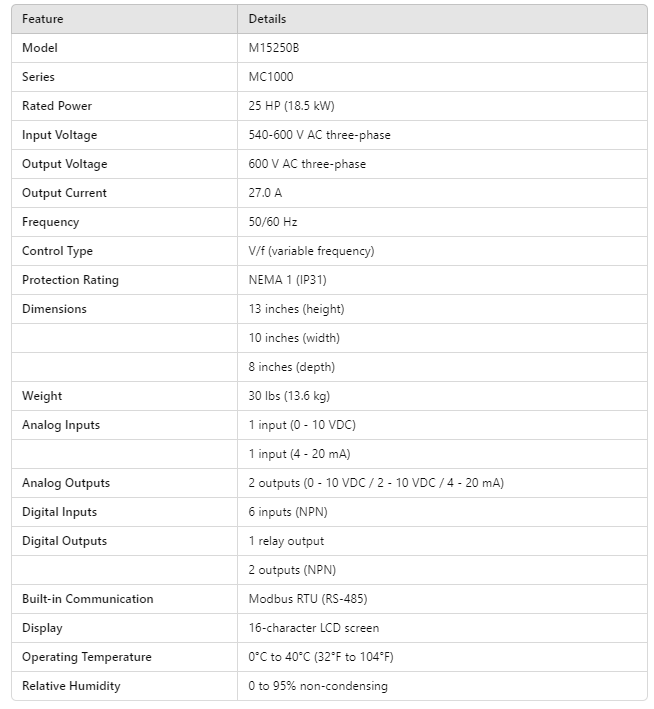

Feature Details
Model M15250B
Series MC1000
Rated Power 25 HP (18.5 kW)
Input Voltage 540-600 V AC three-phase
Output Voltage 600 V AC three-phase
Output Current 27.0 A
Frequency 50/60 Hz
Control Type V/f (variable frequency)
Protection Rating NEMA 1 (IP31)
Dimensions
 13 inches (height)
10 inches (width)
8 inches (depth)
Weight 30 lbs (13.6 kg)
Analog Inputs 1 input (0 - 10 VDC)
1 input (4 - 20 mA)
Analog Outputs 2 outputs (0 - 10 VDC / 2 - 10 VDC / 4 - 20 mA)
Digital Inputs 6 inputs (NPN)
Digital Outputs
 1 relay output
2 outputs (NPN)
Built-in Communication Modbus RTU (RS-485)
Display 16-character LCD screen
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 0 to 95% non-condensing
