1 5
WEG  |  SKU: EMN-019166

KT.50402W01DOE, Rolled Steel Jet Pump - C type Premium Efficiency 0.5Hp 3435 Rpm 2P W56C 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

$336.76
shipping

Estimate shipping

Description

KT.50402W01DOE,  Rolled Steel Jet Pump - C type Premium Efficiency 0.5Hp 3435 Rpm 2P W56C 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless

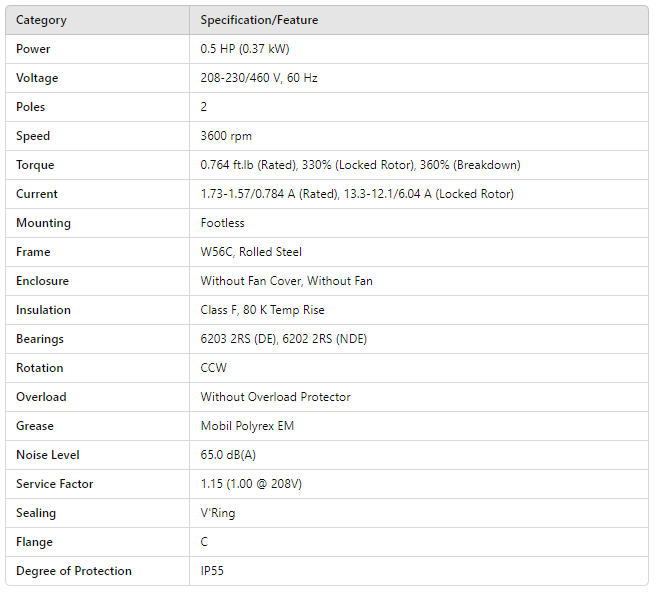

Category Specification/Feature
Power 0.5 HP (0.37 kW)
Voltage 208-230/460 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 0.764 ft.lb (Rated), 330% (Locked Rotor), 360% (Breakdown)
Current 1.73-1.57/0.784 A (Rated), 13.3-12.1/6.04 A (Locked Rotor)
Mounting Footless
Frame W56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 65.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange C
Degree of Protection IP55
