WEG  |  SKU: EMN-019133

KO003502W01DOE, Rolled Steel Jet Pump - C type Premium Efficiency 3Hp 3480 Rpm 2P 56C 3Ph 575 V 60 Hz IC01 - ODP - Footless

$617.40
shipping

Estimate shipping

Description

KO003502W01DOE,  Rolled Steel Jet Pump - C type Premium Efficiency 3Hp 3480 Rpm 2P 56C 3Ph 575 V 60 Hz IC01 - ODP - Footless

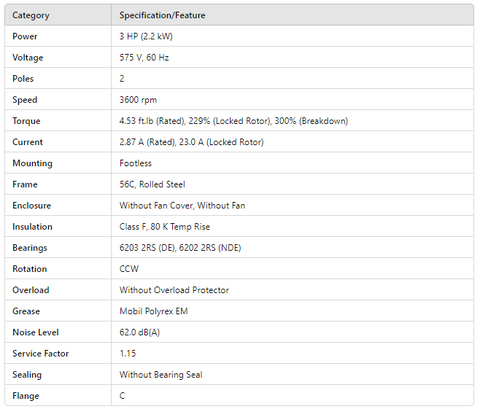

Category Specification/Feature
Power 3 HP (2.2 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 4.53 ft.lb (Rated), 229% (Locked Rotor), 300% (Breakdown)
Current 2.87 A (Rated), 23.0 A (Locked Rotor)
Mounting Footless
Frame 56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 62.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange C
