KO.50502W01DOE, KO.75502W01DOE, KO000402W01DOE, KO000502W01DOE, KO001502W01DOE, KO002402W01DOE, KO002502W01DOE, KO003502W01DOE,

KO002402W01DOE, Rolled Steel Jet Pump - C type Premium Efficiency 2Hp 3510 Rpm 2P 56C 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

E-Motor Nations

$559.92

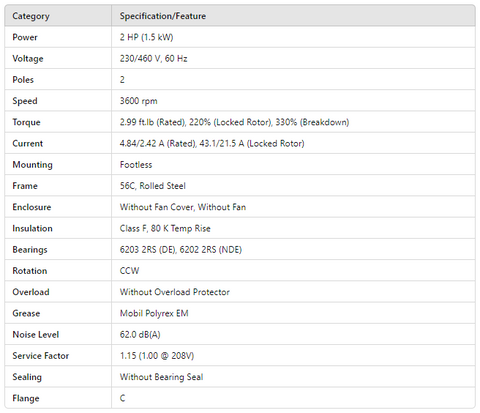

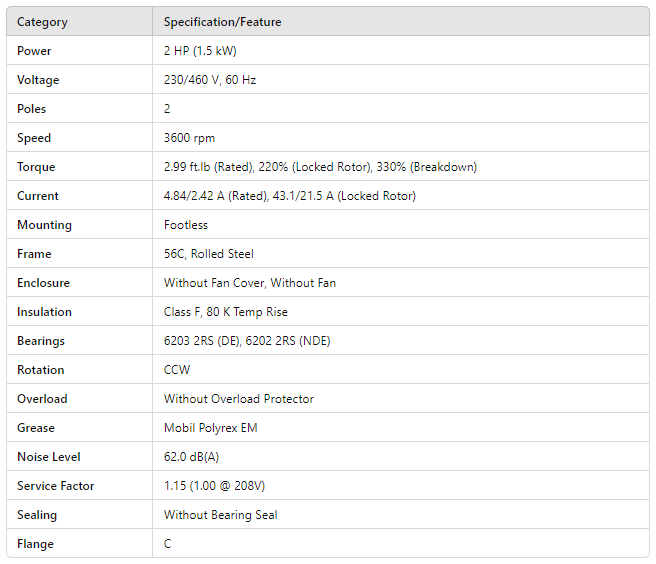

Category	Specification/Feature
Power	2 HP (1.5 kW)
Voltage	230/460 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	2.99 ft.lb (Rated), 220% (Locked Rotor), 330% (Breakdown)
Current	4.84/2.42 A (Rated), 43.1/21.5 A (Locked Rotor)
Mounting	Footless
Frame	56C, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6203 2RS (DE), 6202 2RS (NDE)
Rotation	CCW
Overload	Without Overload Protector
Grease	Mobil Polyrex EM
Noise Level	62.0 dB(A)
Service Factor	1.15 (1.00 @ 208V)
Sealing	Without Bearing Seal
Flange	C
