KO.50502W01DOE, KO.75502W01DOE, KO000402W01DOE, KO000502W01DOE, KO001502W01DOE, KO002402W01DOE, KO002502W01DOE, KO003502W01DOE,

KO.75502W01DOE, Rolled Steel Jet Pump - C type Premium Efficiency 0.75Hp 3450 Rpm 2P W56C 3Ph 575 V 60 Hz IC01 - ODP - Footless

E-Motor Nations

$362.11

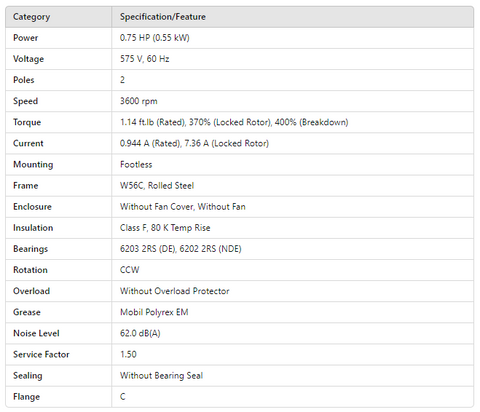

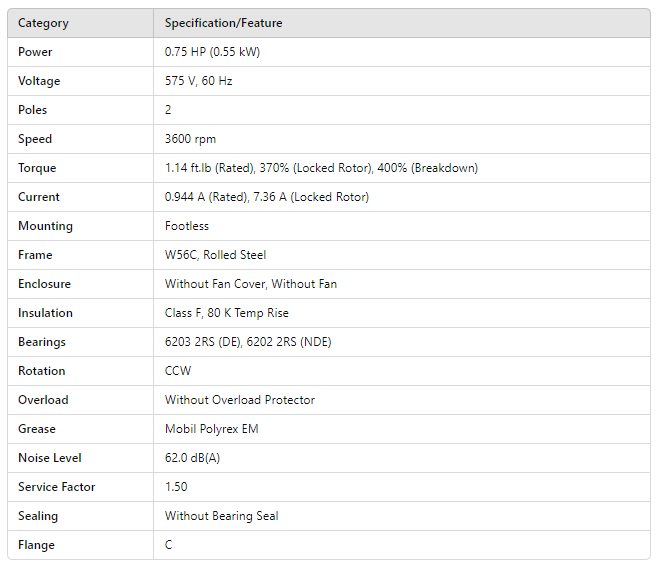

Category	Specification/Feature
Power	0.75 HP (0.55 kW)
Voltage	575 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	1.14 ft.lb (Rated), 370% (Locked Rotor), 400% (Breakdown)
Current	0.944 A (Rated), 7.36 A (Locked Rotor)
Mounting	Footless
Frame	W56C, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6203 2RS (DE), 6202 2RS (NDE)
Rotation	CCW
Overload	Without Overload Protector
Grease	Mobil Polyrex EM
Noise Level	62.0 dB(A)
Service Factor	1.50
Sealing	Without Bearing Seal
Flange	C
