WEG  |  SKU: EMN-019145

JT.50504W01DOE, Rolled Steel Jet Pump - J type Premium Efficiency 0.5Hp 1730 Rpm 4P W56J 3Ph 575 V 60 Hz IC411 - TEFC - Footless

$401.00
shipping

Estimate shipping

Description

JT.50504W01DOE,  Rolled Steel Jet Pump - J type Premium Efficiency 0.5Hp 1730 Rpm 4P W56J 3Ph 575 V 60 Hz IC411 - TEFC - Footless

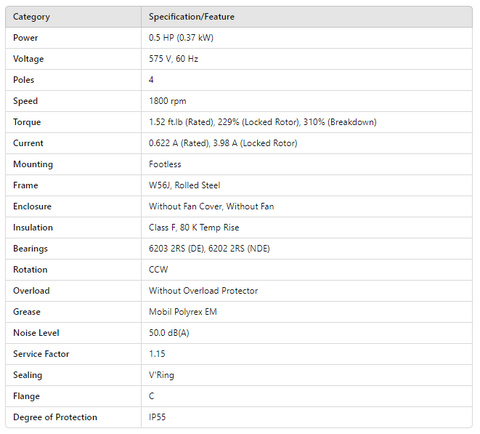

Category Specification/Feature
Power 0.5 HP (0.37 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 1.52 ft.lb (Rated), 229% (Locked Rotor), 310% (Breakdown)
Current 0.622 A (Rated), 3.98 A (Locked Rotor)
Mounting Footless
Frame W56J, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 50.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange C
Degree of Protection IP55
