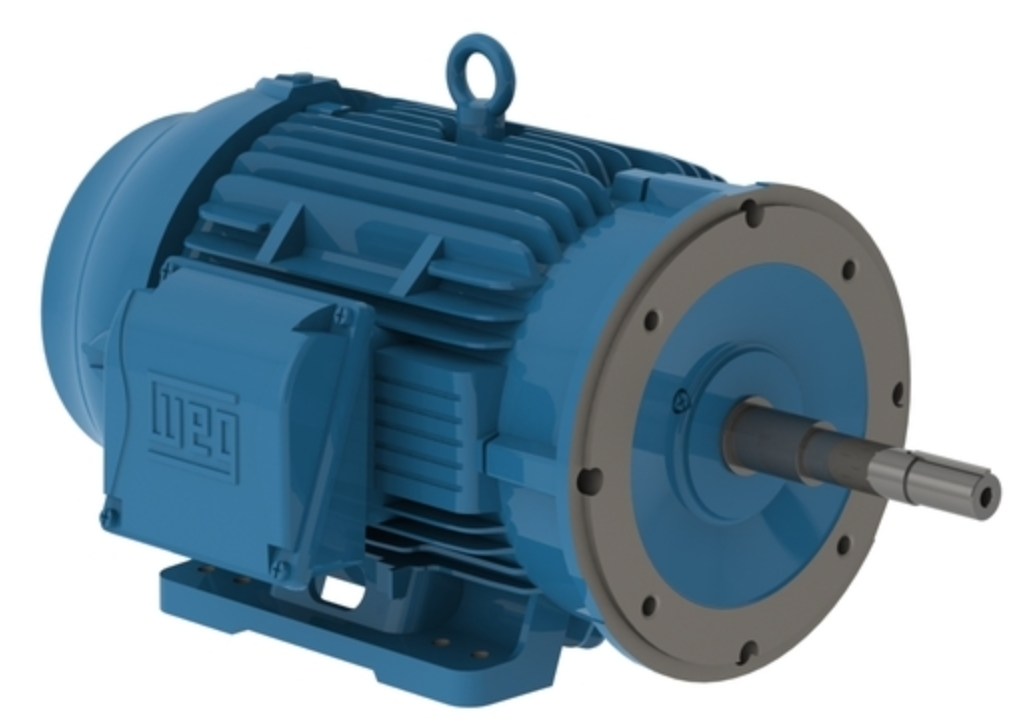

JP025402NPW22256JP, W22 Close Coupled Pump JP NEMA Premium Efficiency 25Hp 3525 RPM 2P 254/6JP 3Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted

JP025402NPW22256JP, W22 Close Coupled Pump JP NEMA Premium Efficiency 25Hp 3525 RPM 2P 254/6JP 3Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted

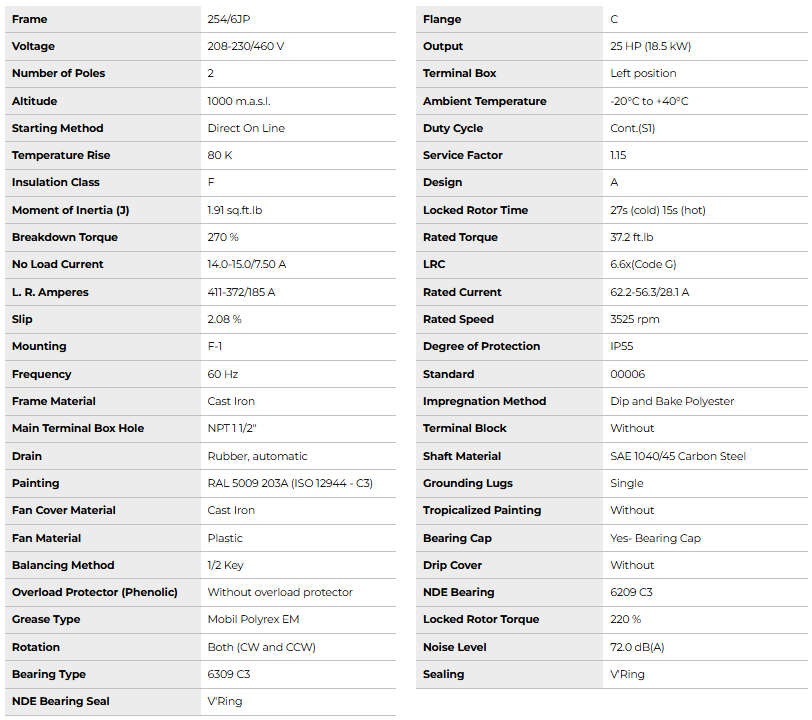

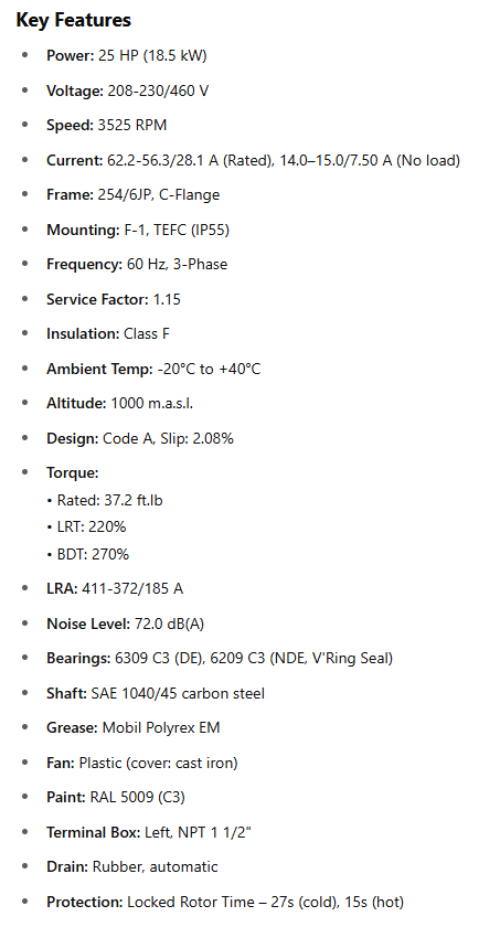

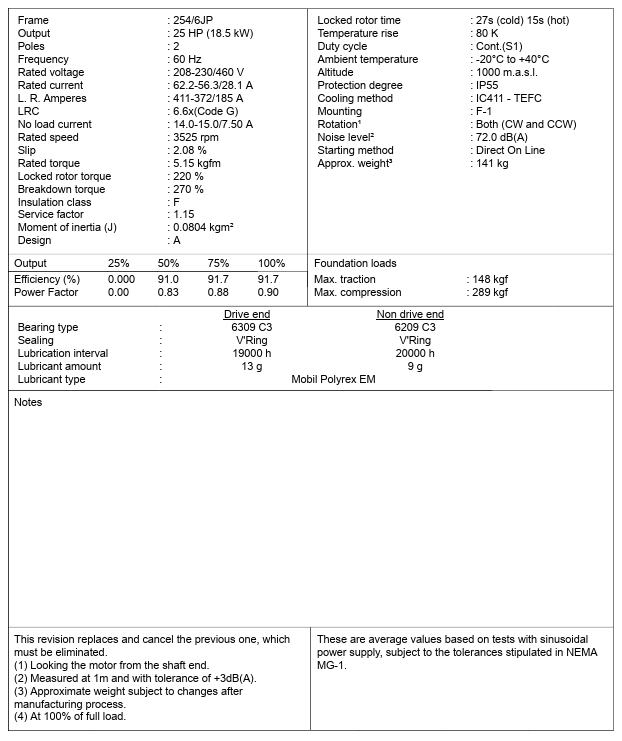

Key Features

• Power: 25 HP (18.5 kW)

• Voltage: 208-230/460 V

• Speed: 3525 RPM

• Current: 62.2-56.3/28.1 A (Rated), 14.0–15.0/7.50 A (No load)

• Frame: 254/6JP, C-Flange

• Mounting: F-1, TEFC (IP55)

• Frequency: 60 Hz, 3-Phase

• Service Factor: 1.15

• Insulation: Class F

• Ambient Temp: -20°C to +40°C

• Altitude: 1000 m.a.s.l.

• Design: Code A, Slip: 2.08%

• Torque:
  • Rated: 37.2 ft.lb
  • LRT: 220%
  • BDT: 270%

• LRA: 411-372/185 A

• Noise Level: 72.0 dB(A)

• Bearings: 6309 C3 (DE), 6209 C3 (NDE, V'Ring Seal)

• Shaft: SAE 1040/45 carbon steel

• Grease: Mobil Polyrex EM

• Fan: Plastic (cover: cast iron)

• Paint: RAL 5009 (C3)

• Terminal Box: Left, NPT 1 1/2"

• Drain: Rubber, automatic

• Protection: Locked Rotor Time – 27s (cold), 15s (hot)
