WEG  |  SKU: EMN-019101

JO.50102W01DOE, Rolled Steel Jet Pump - J type 0.5Hp 3510 Rpm 2P W56J 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless

$277.58
shipping

Estimate shipping

Description

JO.50102W01DOE,  Rolled Steel Jet Pump - J type 0.5Hp 3510 Rpm 2P W56J 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless

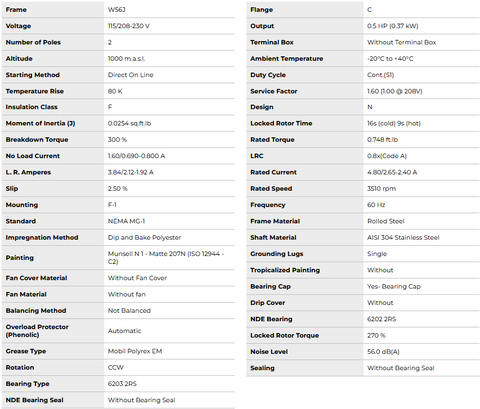

Category Specification/Feature
Power 0.5 HP (0.37 kW)
Voltage 115/208-230 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 0.748 ft.lb (Rated), 270% (Locked Rotor), 300% (Breakdown)
Current 4.80/2.65-2.40 A (Rated), 3.84/2.12-1.92 A (Locked Rotor)
Mounting Footless
Frame W56J, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CCW
Overload Automatic Overload Protector
Grease Mobil Polyrex EM
Noise Level 56.0 dB(A)
Service Factor 1.60 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange C
