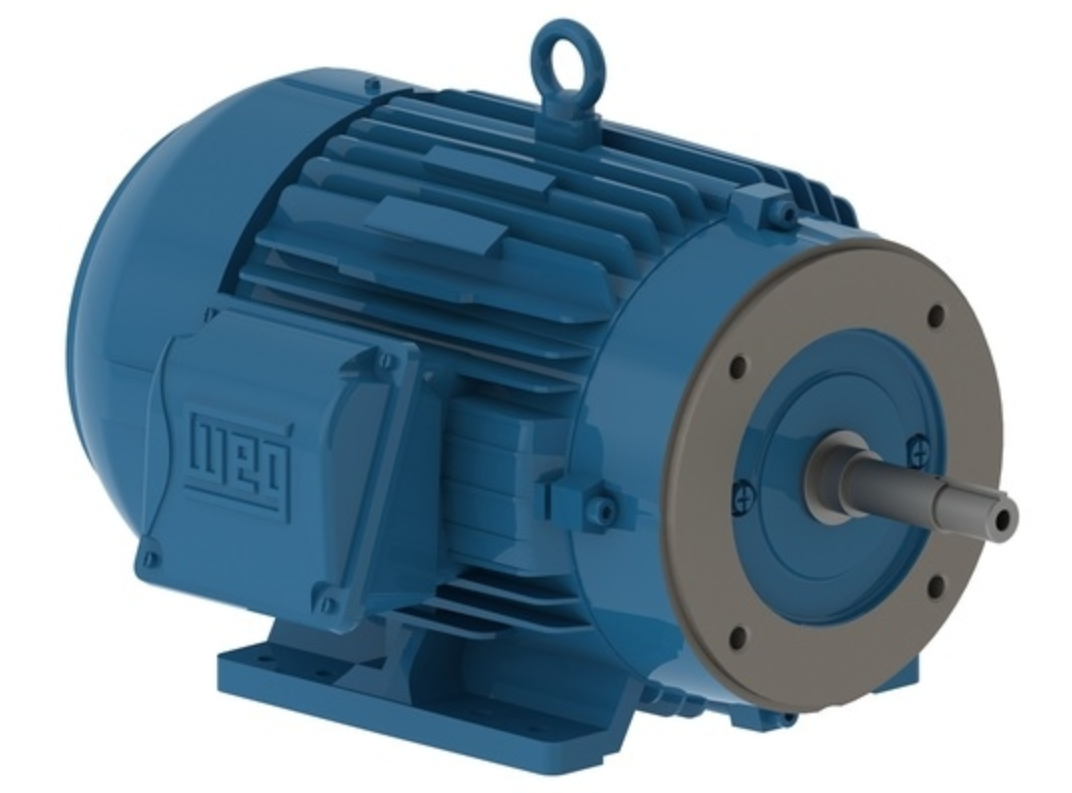

JM015402NPW22215JM, W22 Close Coupled Pump Jm Nema Premium Efficiency, 15Hp 2p 213/5jm 3ph 208-230/460//380 V 60//50 Hz Ic411 - Tefc - Foot-Mounted

JM015402NPW22215JM, W22 Close Coupled Pump Jm Nema Premium Efficiency, 15Hp 2p 213/5jm 3ph 208-230/460//380 V 60//50 Hz Ic411 - Tefc - Foot-Mounted

Replace: JMM3713T, EJMM3713T, 37M031S632H1, 37M031R228G2, JMQP-36S, JM015402NPW01215JM,

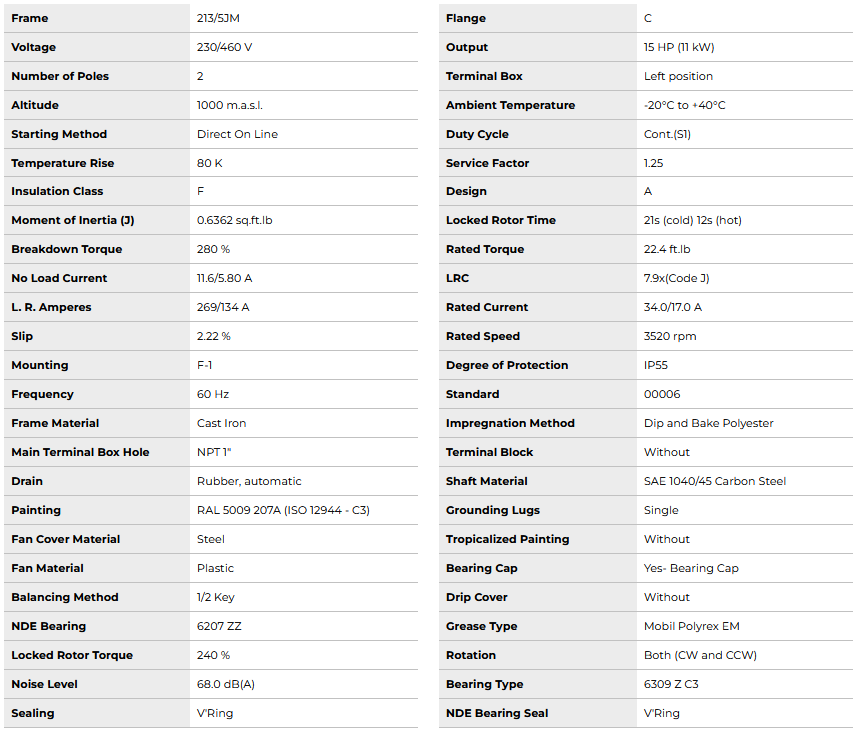

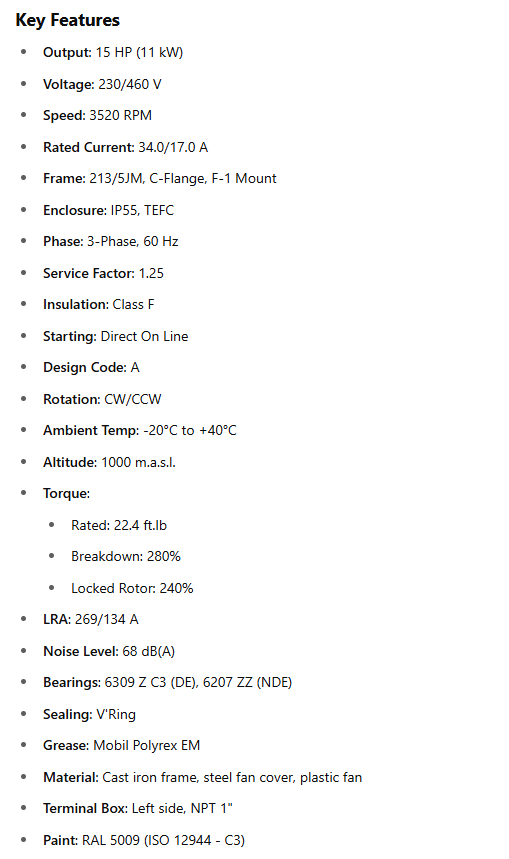

Key Features

• Output: 15 HP (11 kW)

• Voltage: 230/460 V

• Speed: 3520 RPM

• Rated Current: 34.0/17.0 A

• Frame: 213/5JM, C-Flange, F-1 Mount

• Enclosure: IP55, TEFC

• Phase: 3-Phase, 60 Hz

• Service Factor: 1.25

• Insulation: Class F

• Starting: Direct On Line

• Design Code: A

• Rotation: CW/CCW

• Ambient Temp: -20°C to +40°C

• Altitude: 1000 m.a.s.l.

• Torque:

  • Rated: 22.4 ft.lb

  • Breakdown: 280%

  • Locked Rotor: 240%

• LRA: 269/134 A

• Noise Level: 68 dB(A)

• Bearings: 6309 Z C3 (DE), 6207 ZZ (NDE)

• Sealing: V'Ring

• Grease: Mobil Polyrex EM

• Material: Cast iron frame, steel fan cover, plastic fan

• Terminal Box: Left side, NPT 1"

• Paint: RAL 5009 (ISO 12944 - C3)
