I51BP255C00001K00S, i510 protec, NEMA 1 / IP20, 5.5 kW, 7.5Hp, 3ph 230/240V, Standard I/O, no safety technology, no extension box, LCD Keypad

I51BP255C00001K00S, i510 protec, NEMA 1 / IP20, 5.5 kW, 7.5Hp, 3ph 230/240V, Standard I/O, no safety technology, no extension box, LCD Keypad

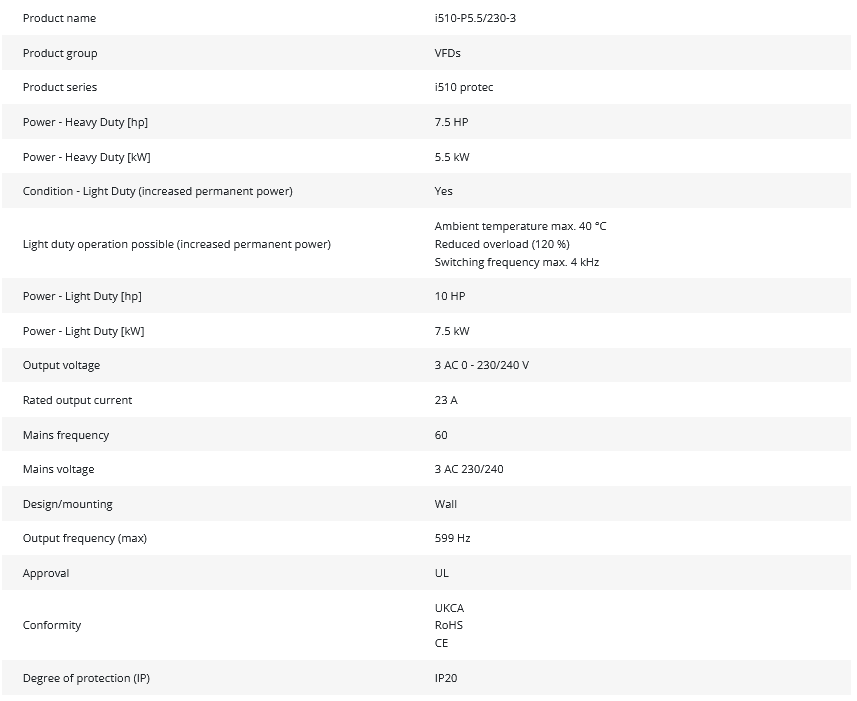

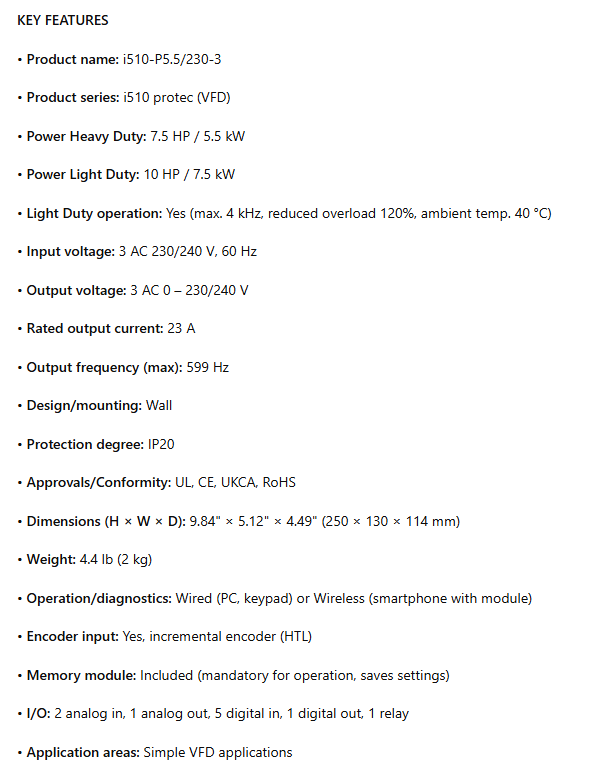

KEY FEATURES

• Product name: i510-P5.5/230-3

• Product series: i510 protec (VFD)

• Power Heavy Duty: 7.5 HP / 5.5 kW

• Power Light Duty: 10 HP / 7.5 kW

• Light Duty operation: Yes (max. 4 kHz, reduced overload 120%, ambient temp. 40 °C)

• Input voltage: 3 AC 230/240 V, 60 Hz

• Output voltage: 3 AC 0 – 230/240 V

• Rated output current: 23 A

• Output frequency (max): 599 Hz

• Design/mounting: Wall

• Protection degree: IP20

• Approvals/Conformity: UL, CE, UKCA, RoHS

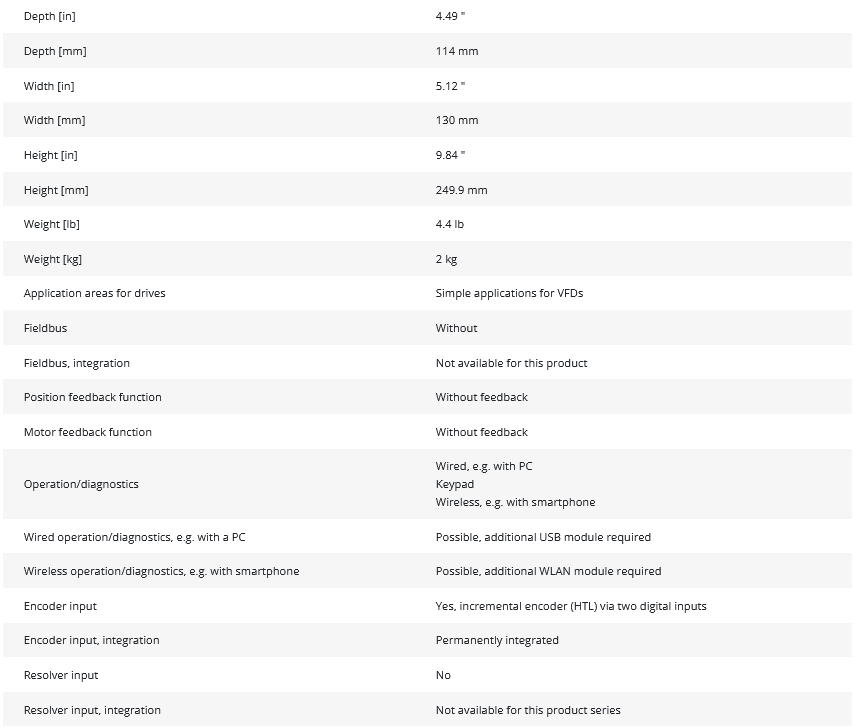

• Dimensions (H × W × D): 9.84" × 5.12" × 4.49" (250 × 130 × 114 mm)

• Weight: 4.4 lb (2 kg)

• Operation/diagnostics: Wired (PC, keypad) or Wireless (smartphone with module)

• Encoder input: Yes, incremental encoder (HTL)

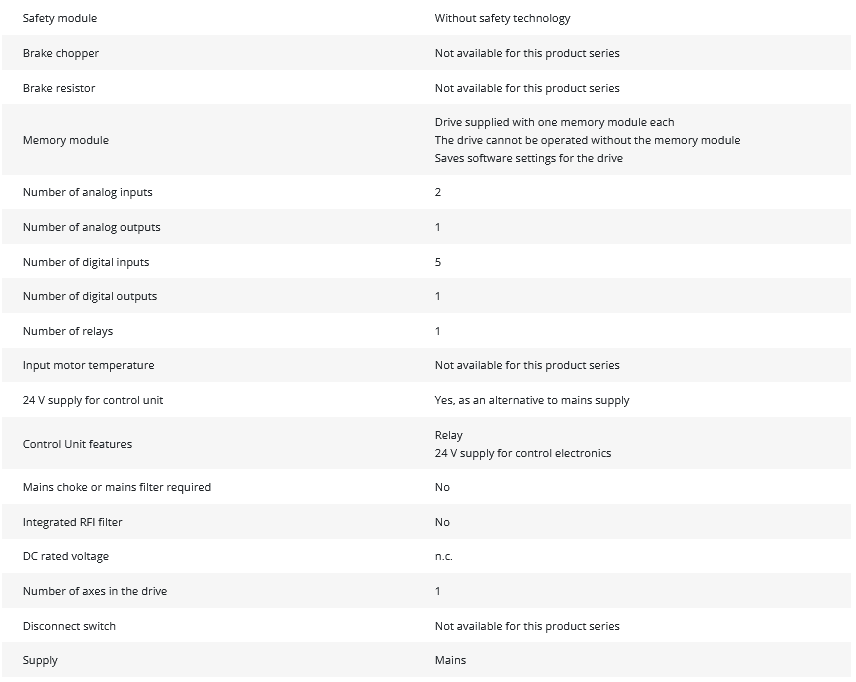

• Memory module: Included (mandatory for operation, saves settings)

• I/O: 2 analog in, 1 analog out, 5 digital in, 1 digital out, 1 relay

• Application areas: Simple VFD applications

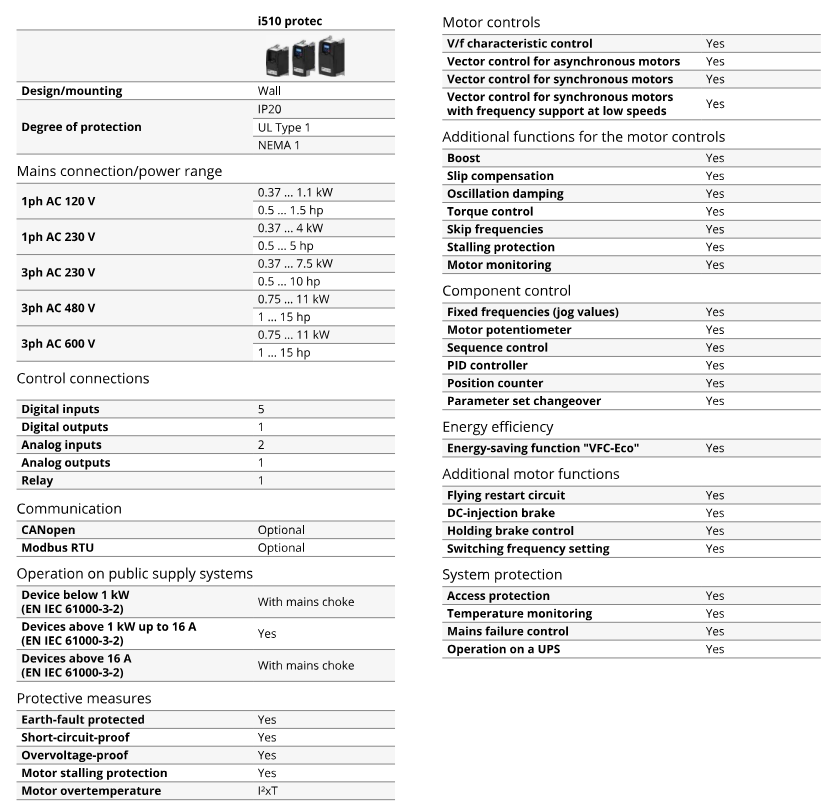

Robust and trusted, the i510 protec variable frequency drive (VFD) is purpose-built to be mounted outside the control cabinet or close to the motor. A focus on low cost and simple functionality in the power range of 0.5 to 15 hp (0.37 to 11 kW), makes this reliable drive the right solution in various applications.

The same tried-and-tested technology used in our i510 cabinet is replicated in the i510 protec. This ensures familiarity and dependability with more housing protection and adapted design.

With its scalable functionality and exceptional user-friendliness, the i510 protec solves many typical challenges beyond machine performance.
