I51BP215G00001K00S, i510 protec, NEMA 1 / IP20, 1.5 kW, 2Hp, 3ph 480/600V, Standard I/O, no safety technology, no extension box, LCD Keypad

I51BP215G00001K00S, i510 protec, NEMA 1 / IP20, 1.5 kW, 2Hp, 3ph 480/600V, Standard I/O, no safety technology, no extension box, LCD Keypad

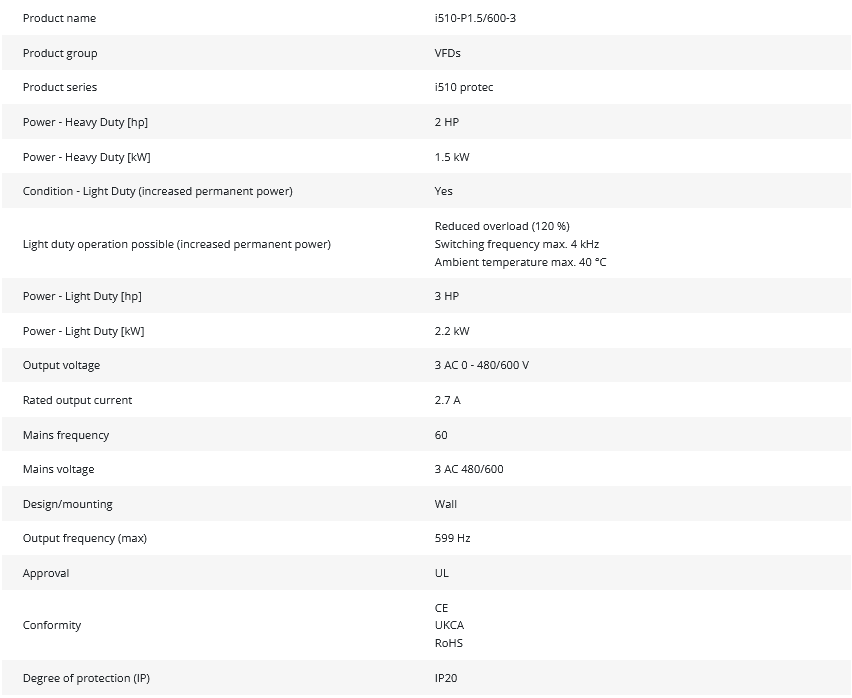

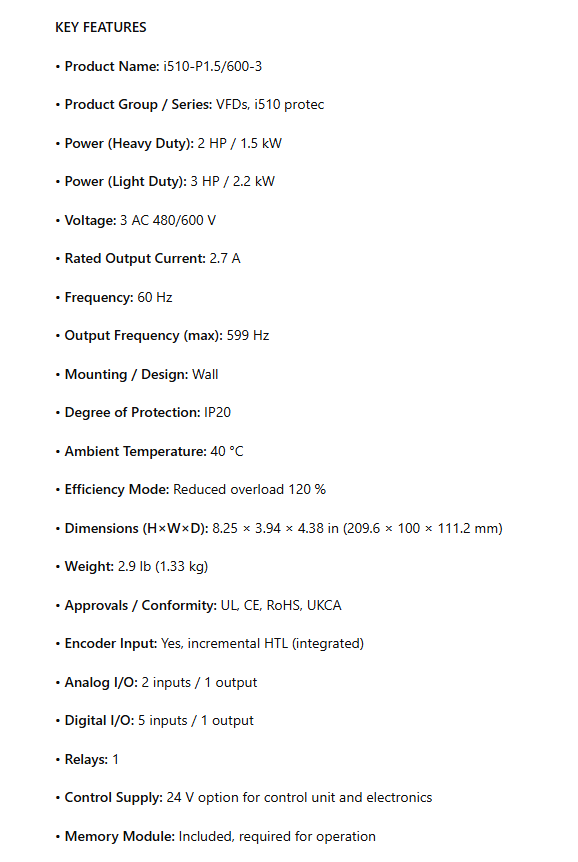

KEY FEATURES

• Product Name: i510-P1.5/600-3

• Product Group / Series: VFDs, i510 protec

• Power (Heavy Duty): 2 HP / 1.5 kW

• Power (Light Duty): 3 HP / 2.2 kW

• Voltage: 3 AC 480/600 V

• Rated Output Current: 2.7 A

• Frequency: 60 Hz

• Output Frequency (max): 599 Hz

• Mounting / Design: Wall

• Degree of Protection: IP20

• Ambient Temperature: 40 °C

• Efficiency Mode: Reduced overload 120 %

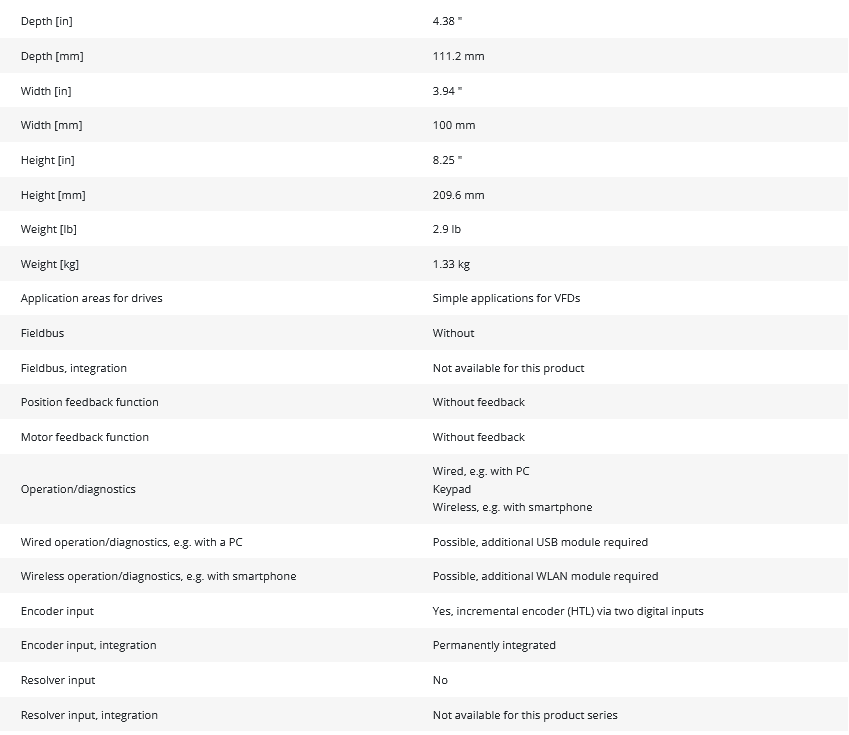

• Dimensions (H×W×D): 8.25 × 3.94 × 4.38 in (209.6 × 100 × 111.2 mm)

• Weight: 2.9 lb (1.33 kg)

• Approvals / Conformity: UL, CE, RoHS, UKCA

• Encoder Input: Yes, incremental HTL (integrated)

• Analog I/O: 2 inputs / 1 output

• Digital I/O: 5 inputs / 1 output

• Relays: 1

• Control Supply: 24 V option for control unit and electronics

• Memory Module: Included, required for operation

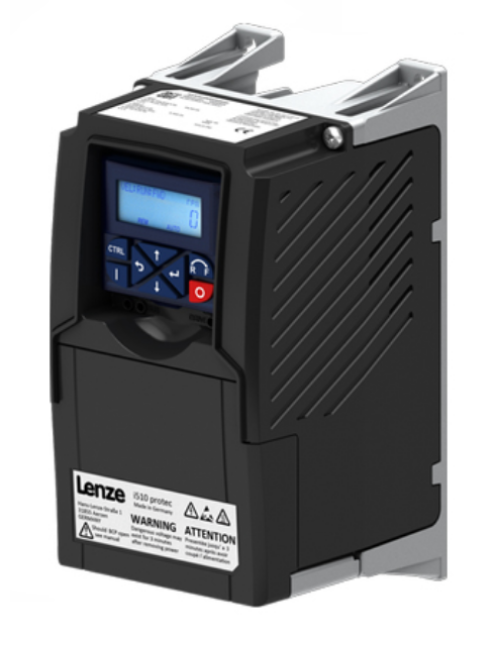

Robust and trusted, the i510 protec variable frequency drive (VFD) is purpose-built to be mounted outside the control cabinet or close to the motor. A focus on low cost and simple functionality in the power range of 0.5 to 15 hp (0.37 to 11 kW), makes this reliable drive the right solution in various applications.

The same tried-and-tested technology used in our i510 cabinet is replicated in the i510 protec. This ensures familiarity and dependability with more housing protection and adapted design.

With its scalable functionality and exceptional user-friendliness, the i510 protec solves many typical challenges beyond machine performance.
