I51BP137A00001K00S, i510 protec, NEMA 1 / IP20, 0.37 kW, 0.5Hp, 1ph 120V, Standard I/O, no safety technology, no extension box, LCD Keypad

I51BP137A00001K00S, i510 protec, NEMA 1 / IP20, 0.37 kW, 0.5Hp, 1ph 120V, Standard I/O, no safety technology, no extension box, LCD Keypad

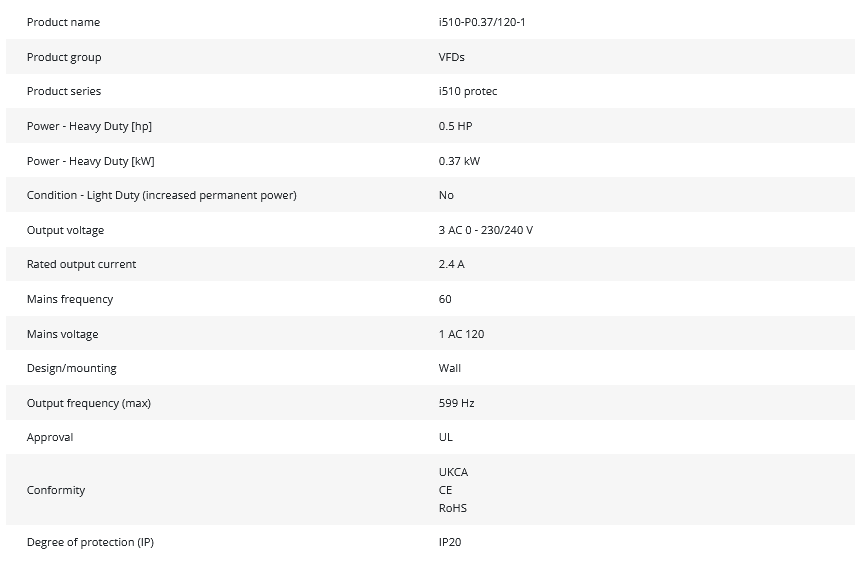

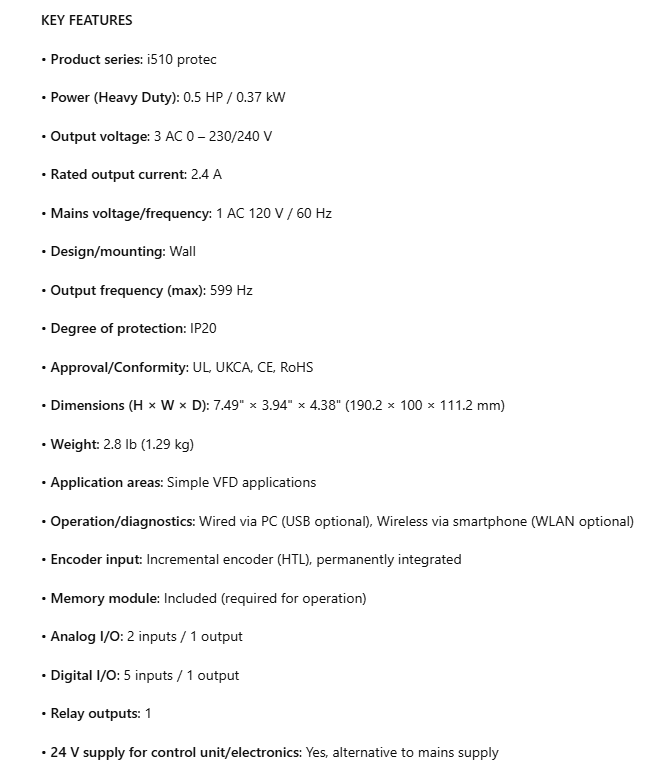

KEY FEATURES

• Product series: i510 protec

• Power (Heavy Duty): 0.5 HP / 0.37 kW

• Output voltage: 3 AC 0 – 230/240 V

• Rated output current: 2.4 A

• Mains voltage/frequency: 1 AC 120 V / 60 Hz

• Design/mounting: Wall

• Output frequency (max): 599 Hz

• Degree of protection: IP20

• Approval/Conformity: UL, UKCA, CE, RoHS

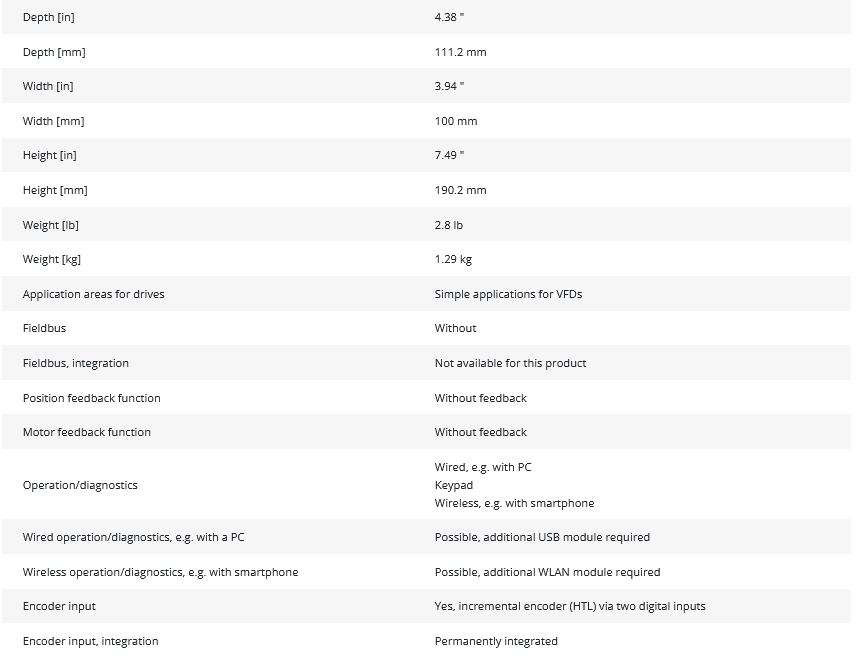

• Dimensions (H × W × D): 7.49" × 3.94" × 4.38" (190.2 × 100 × 111.2 mm)

• Weight: 2.8 lb (1.29 kg)

• Application areas: Simple VFD applications

• Operation/diagnostics: Wired via PC (USB optional), Wireless via smartphone (WLAN optional)

• Encoder input: Incremental encoder (HTL), permanently integrated

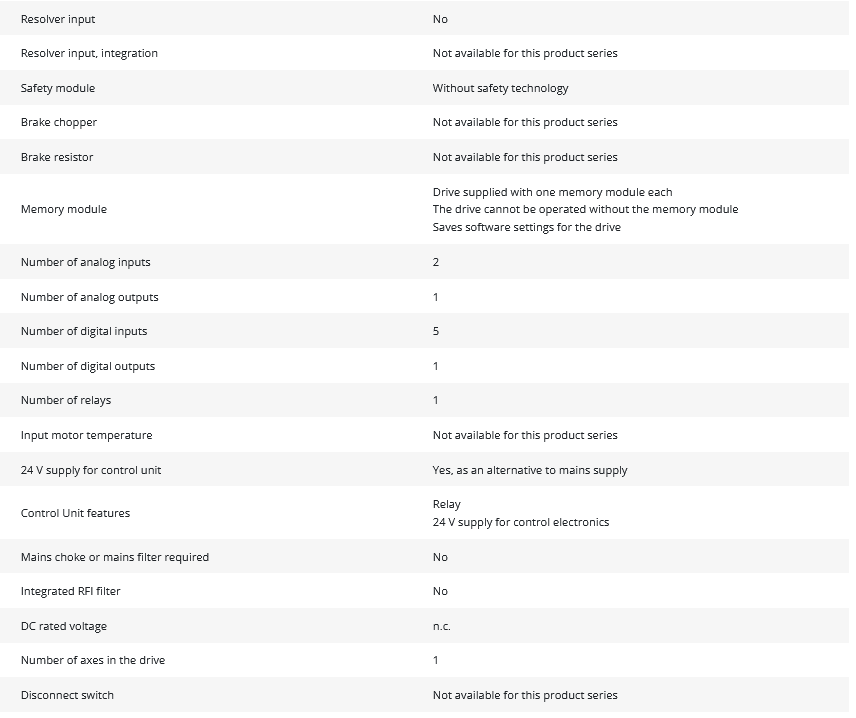

• Memory module: Included (required for operation)

• Analog I/O: 2 inputs / 1 output

• Digital I/O: 5 inputs / 1 output

• Relay outputs: 1

• 24 V supply for control unit/electronics: Yes, alternative to mains supply

Robust and trusted, the i510 protec variable frequency drive (VFD) is purpose-built to be mounted outside the control cabinet or close to the motor. A focus on low cost and simple functionality in the power range of 0.5 to 15 hp (0.37 to 11 kW), makes this reliable drive the right solution in various applications.

The same tried-and-tested technology used in our i510 cabinet is replicated in the i510 protec. This ensures familiarity and dependability with more housing protection and adapted design.

With its scalable functionality and exceptional user-friendliness, the i510 protec solves many typical challenges beyond machine performance.
