WEG  |  SKU: EMN-019282

HT020404NPW01, Rolled Steel NEMA Premium Efficiency 20Hp 1765 Rpm 4P 254/6T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

$2,169.37
shipping

Estimate shipping

Description

HT020404NPW01,  Rolled Steel NEMA Premium Efficiency 20Hp 1765 Rpm 4P 254/6T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

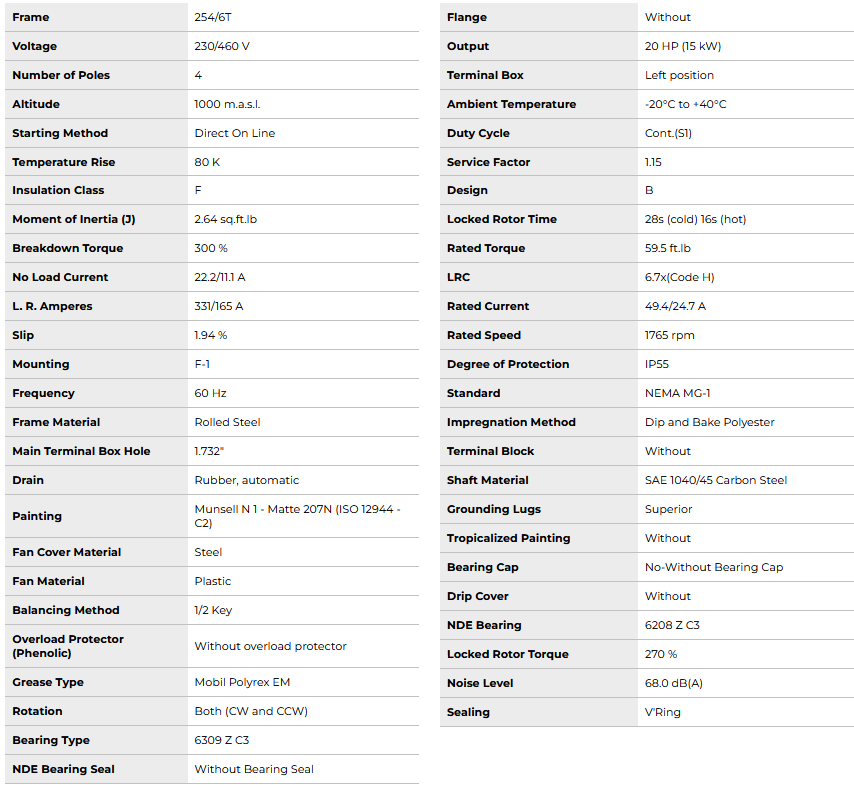

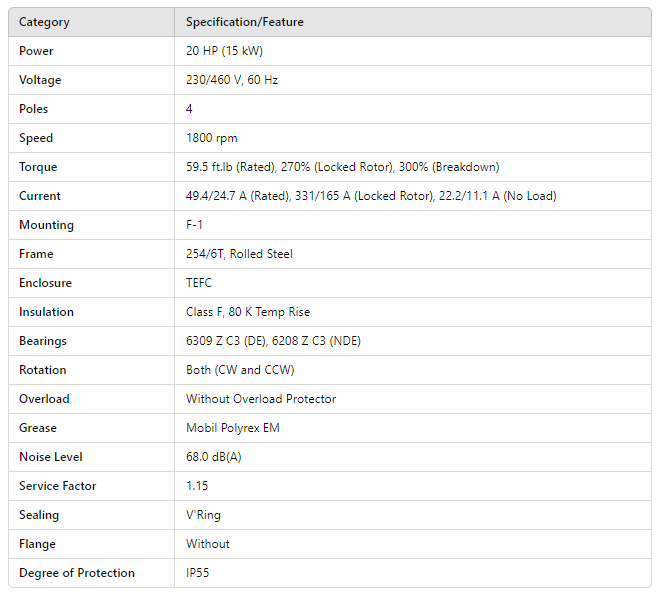

Category Specification/Feature
Power 20 HP (15 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 59.5 ft.lb (Rated), 270% (Locked Rotor), 300% (Breakdown)
Current 49.4/24.7 A (Rated), 331/165 A (Locked Rotor), 22.2/11.1 A (No Load)
Mounting F-1
Frame 254/6T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6309 Z C3 (DE), 6208 Z C3 (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 68.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
