WEG  |  SKU: EMN-019257

HT003406NPW01, Rolled Steel NEMA Premium Efficiency 3Hp 1175 Rpm 6P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

$602.18
shipping

Estimate shipping

Description

HT003406NPW01,  Rolled Steel NEMA Premium Efficiency 3Hp 1175 Rpm 6P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

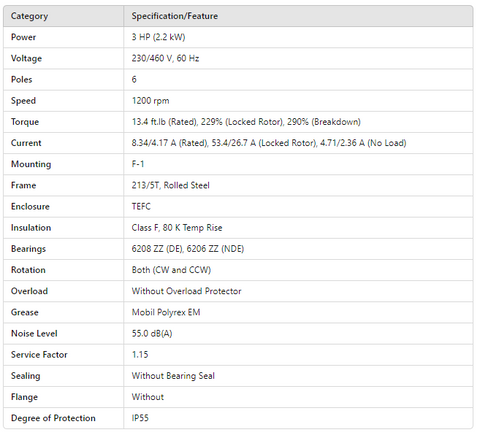

Category Specification/Feature
Power 3 HP (2.2 kW)
Voltage 230/460 V, 60 Hz
Poles 6
Speed 1200 rpm
Torque 13.4 ft.lb (Rated), 229% (Locked Rotor), 290% (Breakdown)
Current 8.34/4.17 A (Rated), 53.4/26.7 A (Locked Rotor), 4.71/2.36 A (No Load)
Mounting F-1
Frame 213/5T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6208 ZZ (DE), 6206 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 55.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without
Degree of Protection IP55
