WEG  |  SKU: EMN-019243

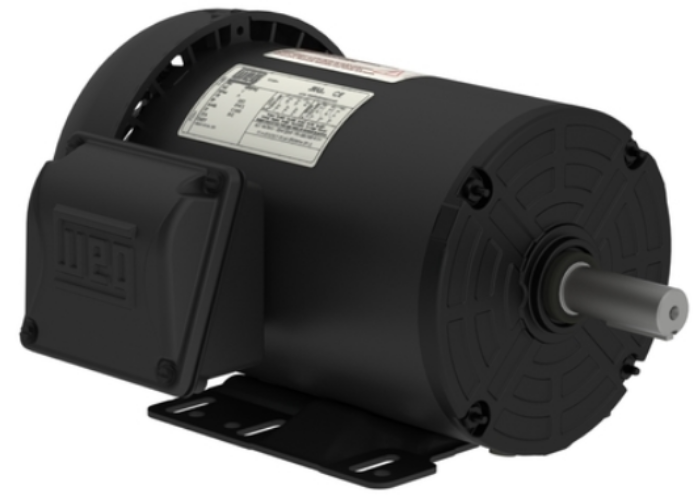

HT002502NPW01, ELECTRIC MOTOR THREE PHASE 2Hp 3520 Rpm 2P 143/5T 575 C/W 6 leads WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUM EFFICIENCY ROLLED STEEL IHP

$570.06
shipping

Estimate shipping

Description

HT002502NPW01,  ELECTRIC MOTOR THREE PHASE 2Hp 3520 Rpm 2P 143/5T 575 C/W 6 leads WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUM EFFICIENCY ROLLED STEEL IHP

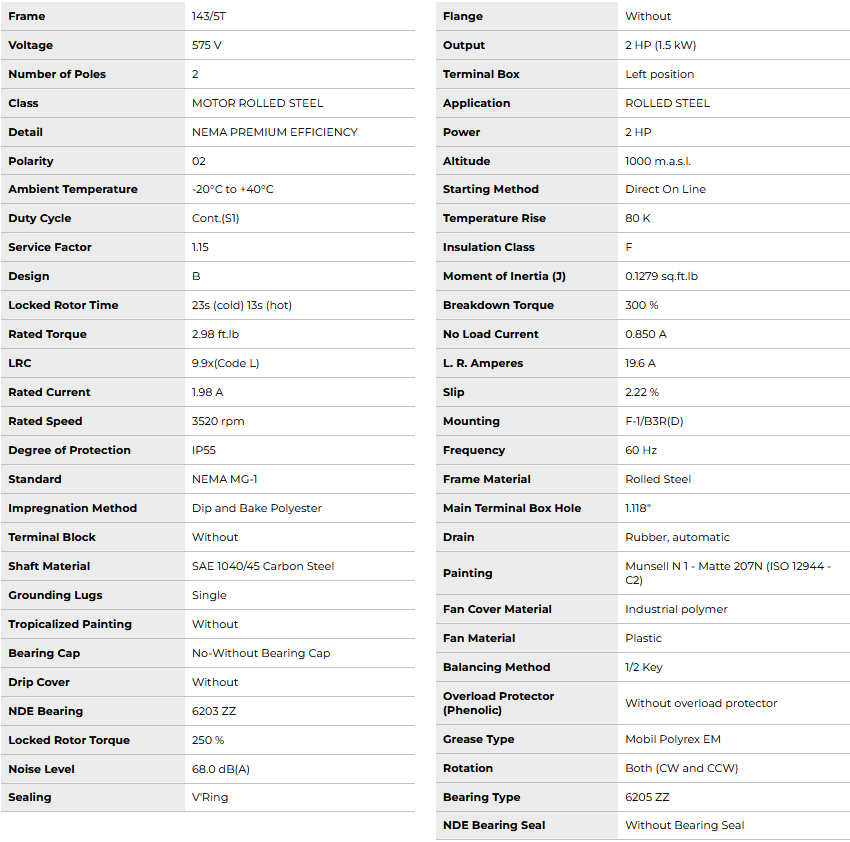

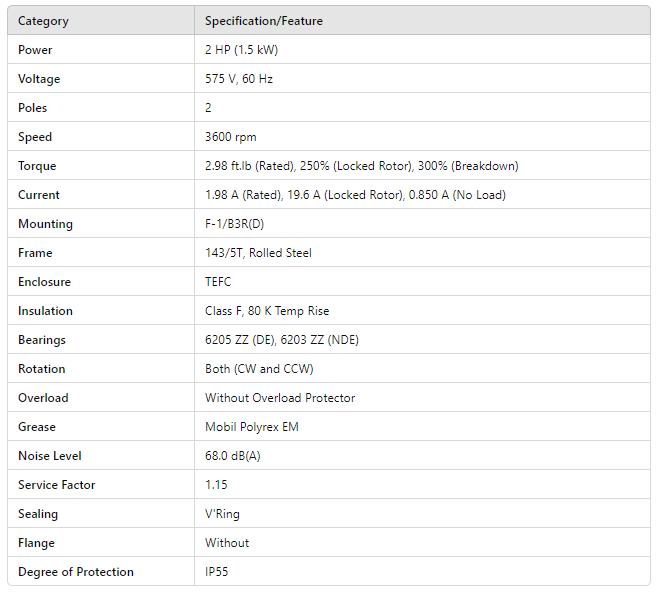

Category Specification/Feature
Power 2 HP (1.5 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 2.98 ft.lb (Rated), 250% (Locked Rotor), 300% (Breakdown)
Current 1.98 A (Rated), 19.6 A (Locked Rotor), 0.850 A (No Load)
Mounting F-1/B3R(D)

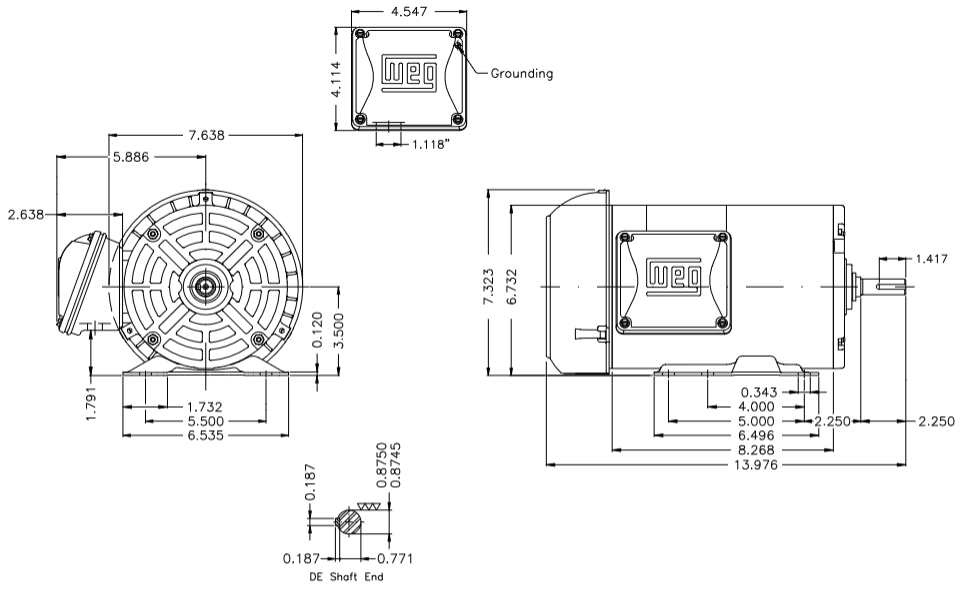

Frame 143/5T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6205 ZZ (DE), 6203 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 68.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
