1 5
WEG  |  SKU: EMN-019239

HT001406NPW01, Rolled Steel NEMA Premium Efficiency 1.5Hp 1170 Rpm 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted,

$735.74
shipping

Estimate shipping

Description

HT001406NPW01,  Rolled Steel NEMA Premium Efficiency 1.5Hp 1170 Rpm 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted,

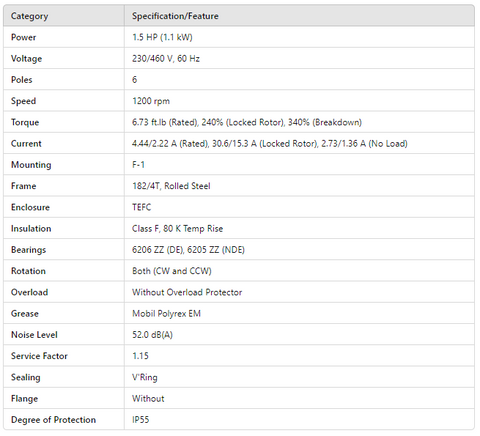

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 230/460 V, 60 Hz
Poles 6
Speed 1200 rpm
Torque 6.73 ft.lb (Rated), 240% (Locked Rotor), 340% (Breakdown)
Current 4.44/2.22 A (Rated), 30.6/15.3 A (Locked Rotor), 2.73/1.36 A (No Load)
Mounting F-1
Frame 182/4T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6206 ZZ (DE), 6205 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
