WEG  |  SKU: EMN-019231

HT000506NPW01, Rolled Steel NEMA Premium Efficiency 1Hp 1145 Rpm 6P 143/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

$595.42
shipping

Estimate shipping

Description

HT000506NPW01,  Rolled Steel NEMA Premium Efficiency 1Hp 1145 Rpm 6P 143/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

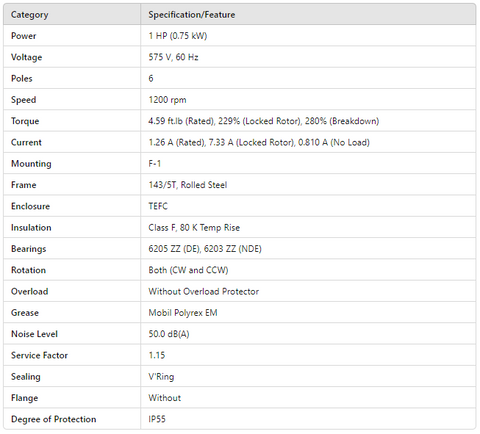

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 575 V, 60 Hz
Poles 6
Speed 1200 rpm
Torque 4.59 ft.lb (Rated), 229% (Locked Rotor), 280% (Breakdown)
Current 1.26 A (Rated), 7.33 A (Locked Rotor), 0.810 A (No Load)
Mounting F-1
Frame 143/5T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6205 ZZ (DE), 6203 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 50.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
