FD1CM2PCR, Agri Duty High Torque, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56C, C063HDS5528015B

FD1CM2PCR, Agri Duty High Torque, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56C, C063HDS5528015B

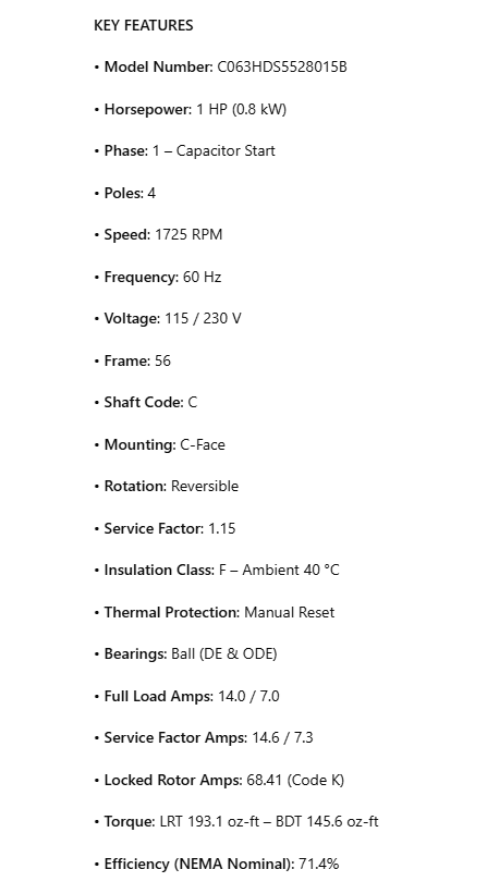

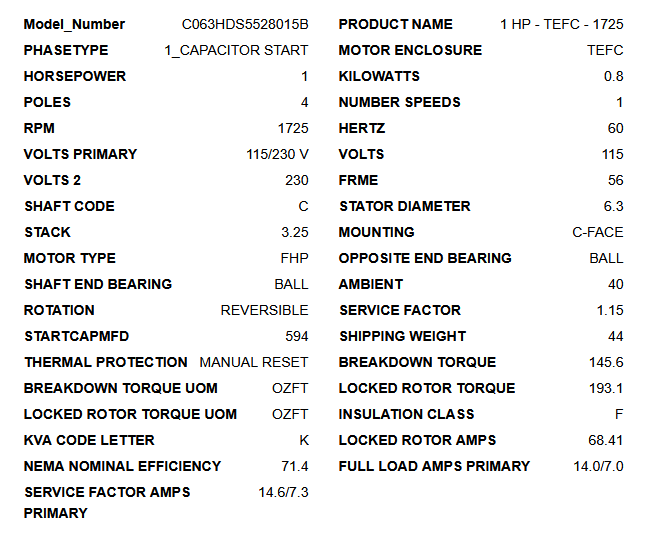

KEY FEATURES

• Model Number: C063HDS5528015B

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 – Capacitor Start

• Poles: 4

• Speed: 1725 RPM

• Frequency: 60 Hz

• Voltage: 115 / 230 V

• Frame: 56

• Shaft Code: C

• Mounting: C-Face

• Rotation: Reversible

• Service Factor: 1.15

• Insulation Class: F – Ambient 40 °C

• Thermal Protection: Manual Reset

• Bearings: Ball (DE & ODE)

• Full Load Amps: 14.0 / 7.0

• Service Factor Amps: 14.6 / 7.3

• Locked Rotor Amps: 68.41 (Code K)

• Torque: LRT 193.1 oz-ft – BDT 145.6 oz-ft

• Efficiency (NEMA Nominal): 71.4%
