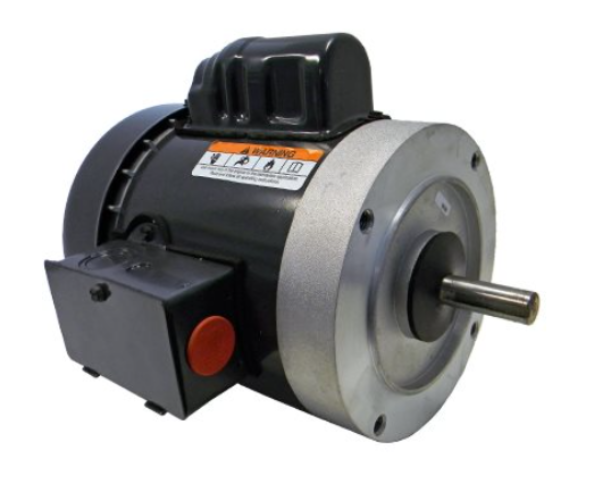

FD12CM2PC, Agri Duty High Torque, 1/2Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56c, C063HDM5527015B

FD12CM2PC, Agri Duty High Torque, 1/2Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56c, C063HDM5527015B

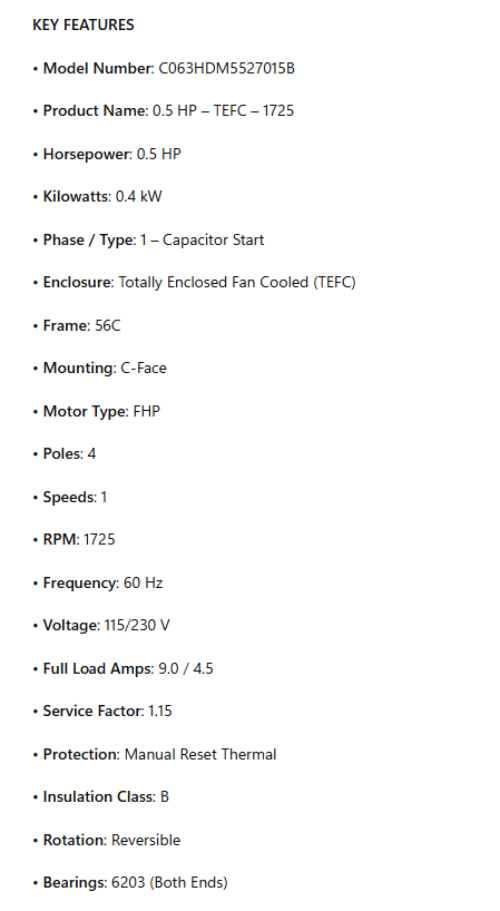

KEY FEATURES

• Model Number: C063HDM5527015B

• Product Name: 0.5 HP – TEFC – 1725

• Horsepower: 0.5 HP

• Kilowatts: 0.4 kW

• Phase / Type: 1 – Capacitor Start

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Frame: 56C

• Mounting: C-Face

• Motor Type: FHP

• Poles: 4

• Speeds: 1

• RPM: 1725

• Frequency: 60 Hz

• Voltage: 115/230 V

• Full Load Amps: 9.0 / 4.5

• Service Factor: 1.15

• Protection: Manual Reset Thermal

• Insulation Class: B

• Rotation: Reversible

• Bearings: 6203 (Both Ends)
