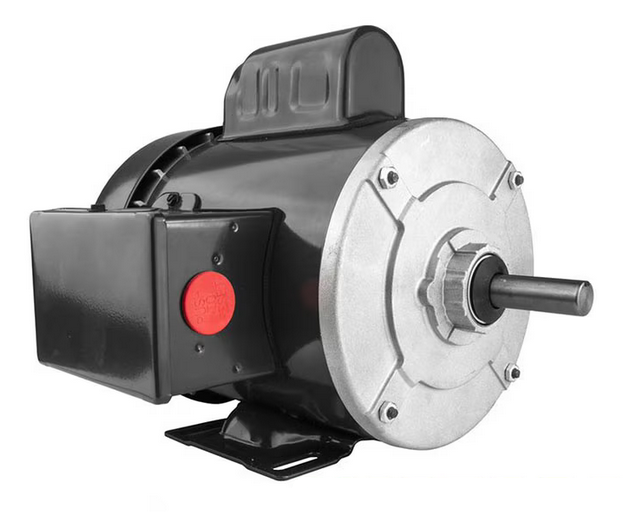

FD12CM2PC, Agri Duty High Torque, 1/2Hp, 1725 RPM, 115/230V, 1PH, 50/60Hz, TEFC, Frame 56c, C063JET1386015B

FD12CM2PC, Agri Duty High Torque, 1/2Hp, 1725 RPM, 115/230V, 1PH, 50/60Hz, TEFC, Frame 56c, C063JET1386015B

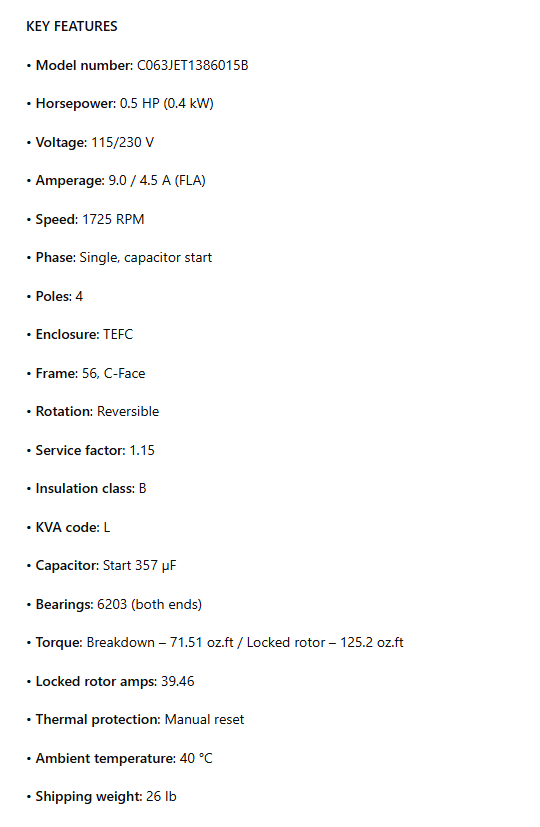

KEY FEATURES

• Model number: C063JET1386015B

• Horsepower: 0.5 HP (0.4 kW)

• Voltage: 115/230 V

• Amperage: 9.0 / 4.5 A (FLA)

• Speed: 1725 RPM

• Phase: Single, capacitor start

• Poles: 4

• Enclosure: TEFC

• Frame: 56, C-Face

• Rotation: Reversible

• Service factor: 1.15

• Insulation class: B

• KVA code: L

• Capacitor: Start 357 µF

• Bearings: 6203 (both ends)

• Torque: Breakdown – 71.51 oz.ft / Locked rotor – 125.2 oz.ft

• Locked rotor amps: 39.46

• Thermal protection: Manual reset

• Ambient temperature: 40 °C

• Shipping weight: 26 lb
