WEG  |  SKU: EMN-018962

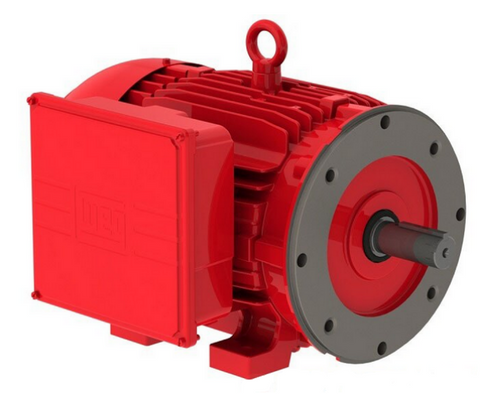

FD007104W22C, W22 7.5Hp 1750 Rpm 4P 213/5TC 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted

$1,878.58
shipping

Estimate shipping

Description

FD007104W22C,  W22 7.5Hp 1750 Rpm 4P 213/5TC 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted

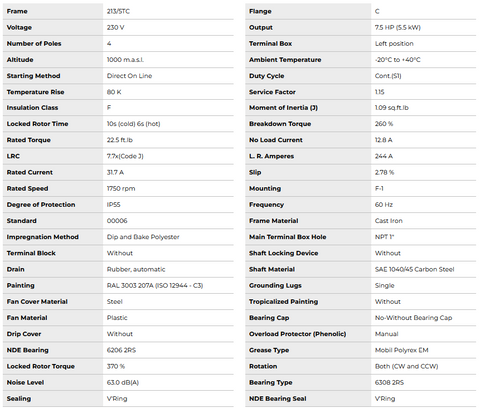

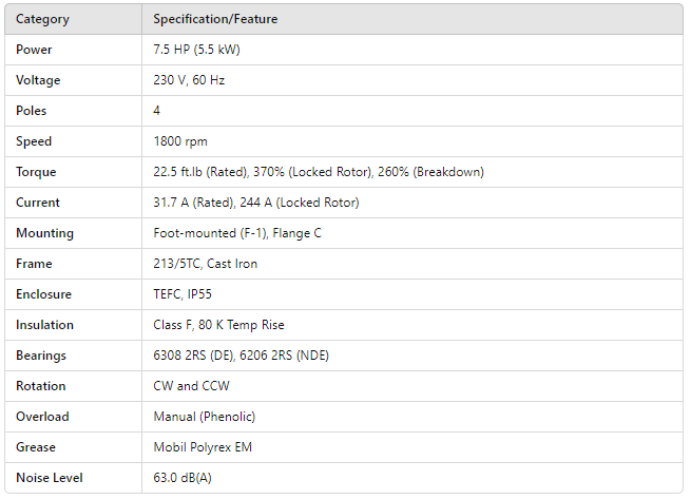

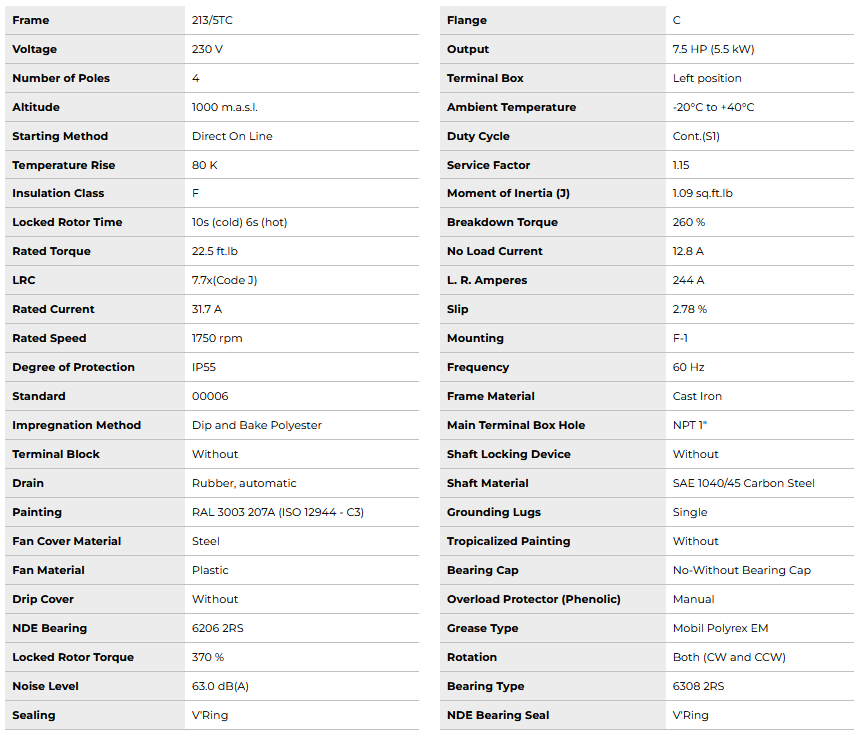

Category Specification/Feature
Power 7.5 HP (5.5 kW)
Voltage 230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 22.5 ft.lb (Rated), 370% (Locked Rotor), 260% (Breakdown)
Current 31.7 A (Rated), 244 A (Locked Rotor)
Mounting Foot-mounted (F-1), Flange C
Frame 213/5TC, Cast Iron
Enclosure TEFC, IP55
Insulation Class F, 80 K Temp Rise
Bearings 6308 2RS (DE), 6206 2RS (NDE)
Rotation CW and CCW
Overload Manual (Phenolic)
Grease Mobil Polyrex EM
Noise Level 63.0 dB(A)
