WEG  |  SKU: EMN-018950

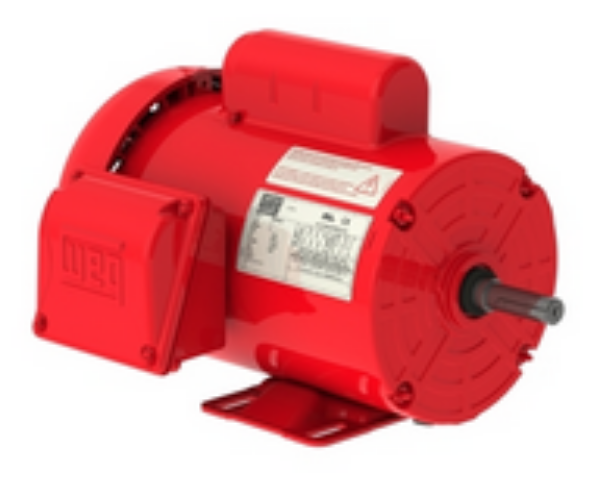

FD002104W01, Rolled Steel 2Hp 1745 Rpm 4P 56H 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

$537.94
shipping

Estimate shipping

Description

FD002104W01,  Rolled Steel 2Hp 1745 Rpm 4P 56H 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

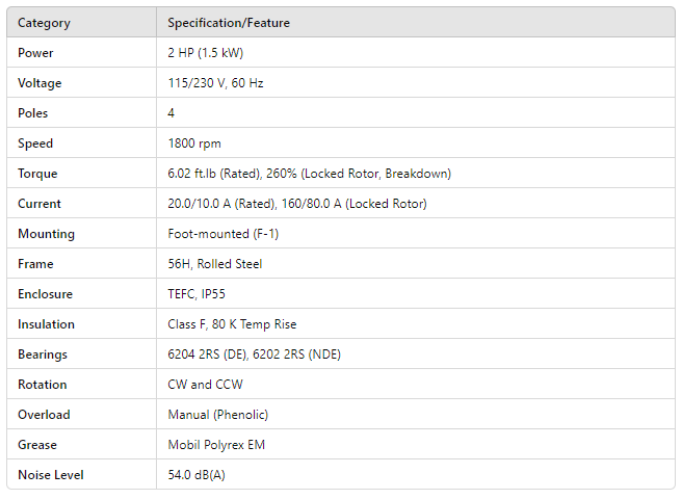

Category Specification/Feature
Power 2 HP (1.5 kW)
Voltage 115/230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 6.02 ft.lb (Rated), 260% (Locked Rotor, Breakdown)
Current 20.0/10.0 A (Rated), 160/80.0 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56H, Rolled Steel
Enclosure TEFC, IP55
Insulation Class F, 80 K Temp Rise
Bearings 6204 2RS (DE), 6202 2RS (NDE)
Rotation CW and CCW
Overload Manual (Phenolic)
Grease Mobil Polyrex EM
Noise Level 54.0 dB(A)
