WEG  |  SKU: EMN-018949

FD001104W01, Rolled Steel 1.5Hp 1745 Rpm 4P 143/5T 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

$472.90
shipping

Estimate shipping

Description

FD001104W01, Rolled Steel 1.5Hp 1745 Rpm 4P 143/5T 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

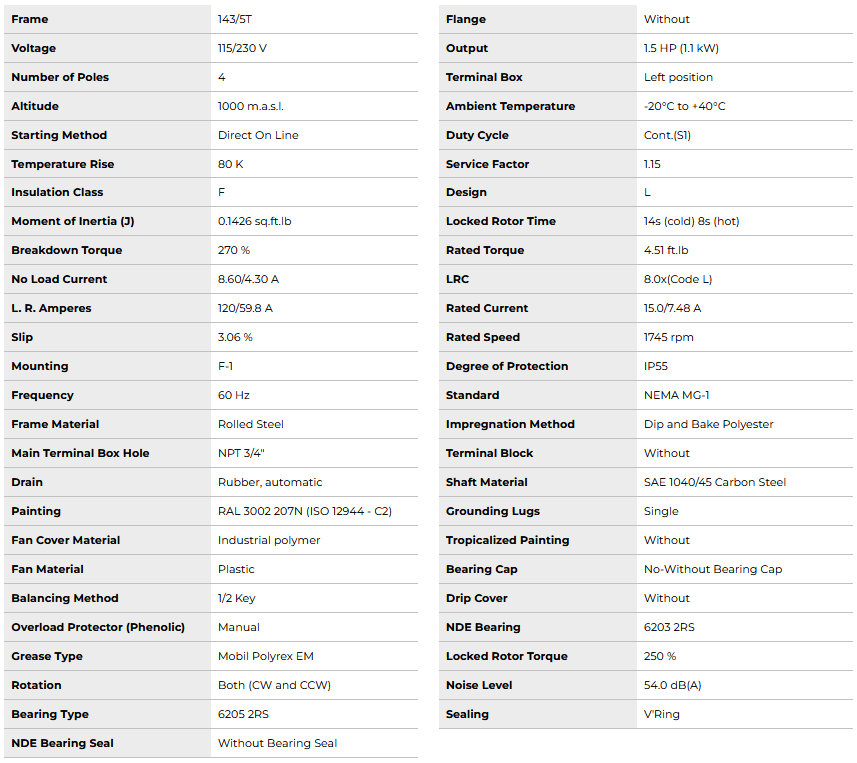

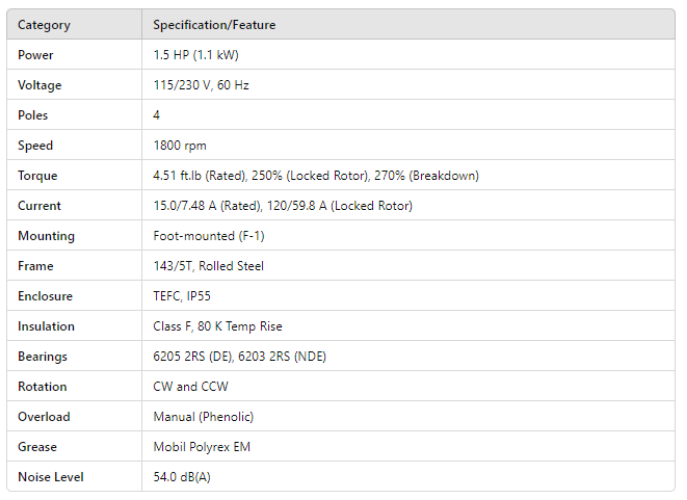

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 115/230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 4.51 ft.lb (Rated), 250% (Locked Rotor), 270% (Breakdown)
Current 15.0/7.48 A (Rated), 120/59.8 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 143/5T, Rolled Steel
Enclosure TEFC, IP55
Insulation Class F, 80 K Temp Rise
Bearings 6205 2RS (DE), 6203 2RS (NDE)
Rotation CW and CCW
Overload Manual (Phenolic)
Grease Mobil Polyrex EM
Noise Level 54.0 dB(A)
