WEG  |  SKU: EMN-019201

FC001104W01DOE, Rolled Steel 1.5Hp 1745 Rpm 4P 56HC 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

$526.10
shipping

Estimate shipping

Description

FC001104W01DOE,  Rolled Steel 1.5Hp 1745 Rpm 4P 56HC 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

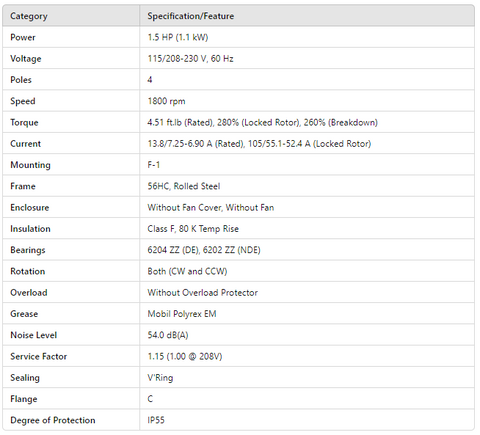

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 115/208-230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 4.51 ft.lb (Rated), 280% (Locked Rotor), 260% (Breakdown)
Current 13.8/7.25-6.90 A (Rated), 105/55.1-52.4 A (Locked Rotor)
Mounting F-1
Frame 56HC, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 54.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange C
Degree of Protection IP55
