WEG  |  SKU: EMN-019200

FC001102W01DOE, Rolled Steel 1.5Hp 3500 Rpm 2P 56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

$466.93
shipping

Estimate shipping

Description

FC001102W01DOE,  Rolled Steel 1.5Hp 3500 Rpm 2P 56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

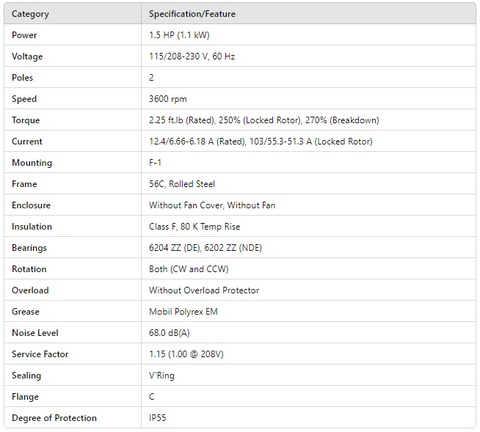

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 115/208-230 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 2.25 ft.lb (Rated), 250% (Locked Rotor), 270% (Breakdown)
Current 12.4/6.66-6.18 A (Rated), 103/55.3-51.3 A (Locked Rotor)
Mounting F-1
Frame 56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 68.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange C
Degree of Protection IP55
