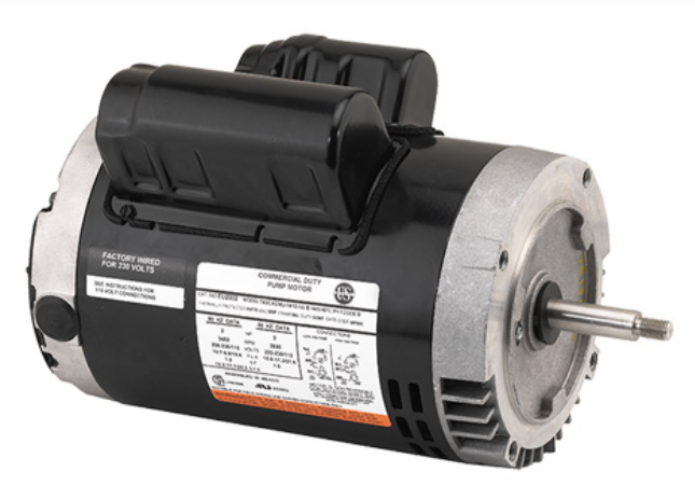

EU0502, Commercial Pump Motors, 1/2Hp, 3450 RPM, 115/208-230V, 1PH, 50/60Hz, ODP, Frame 56J, C055JZN4768013J

EU0502, Commercial Pump Motors, 1/2Hp, 3450 RPM, 115/208-230V, 1PH, 50/60Hz, ODP, Frame 56J, C055JZN4768013J

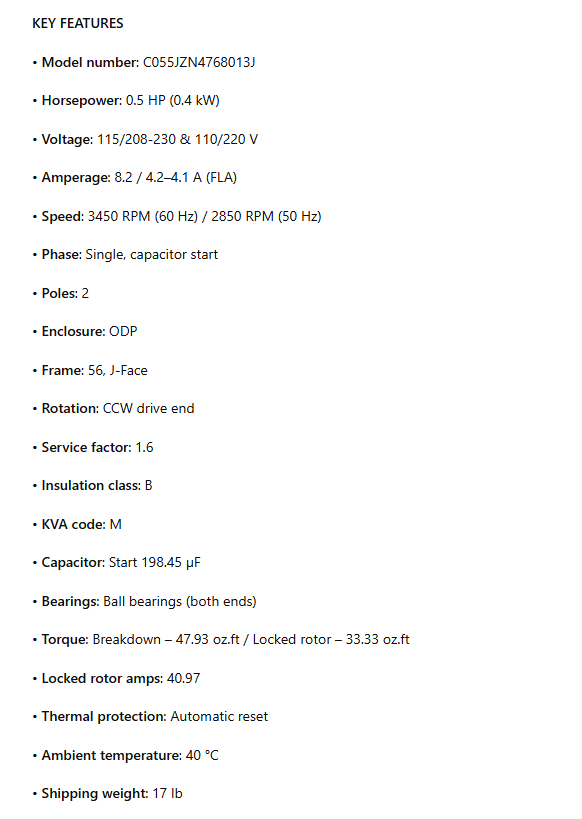

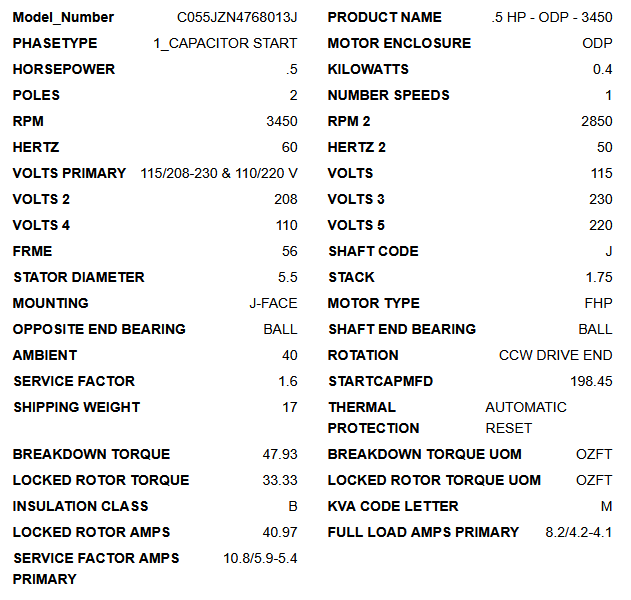

KEY FEATURES

• Model number: C055JZN4768013J

• Horsepower: 0.5 HP (0.4 kW)

• Voltage: 115/208-230 & 110/220 V

• Amperage: 8.2 / 4.2–4.1 A (FLA)

• Speed: 3450 RPM (60 Hz) / 2850 RPM (50 Hz)

• Phase: Single, capacitor start

• Poles: 2

• Enclosure: ODP

• Frame: 56, J-Face

• Rotation: CCW drive end

• Service factor: 1.6

• Insulation class: B

• KVA code: M

• Capacitor: Start 198.45 µF

• Bearings: Ball bearings (both ends)

• Torque: Breakdown – 47.93 oz.ft / Locked rotor – 33.33 oz.ft

• Locked rotor amps: 40.97

• Thermal protection: Automatic reset

• Ambient temperature: 40 °C

• Shipping weight: 17 lb
