ESV402N04TXB, Lenze, 5 Hp, 480V, 3Ph Nema1, 174625.00, VFD, Drives,

ESV402N04TXB, Lenze, 5 Horse power, 480V, 3Ph Nema1, 174625.00, VFD, Drives,

LENZE

$785.00

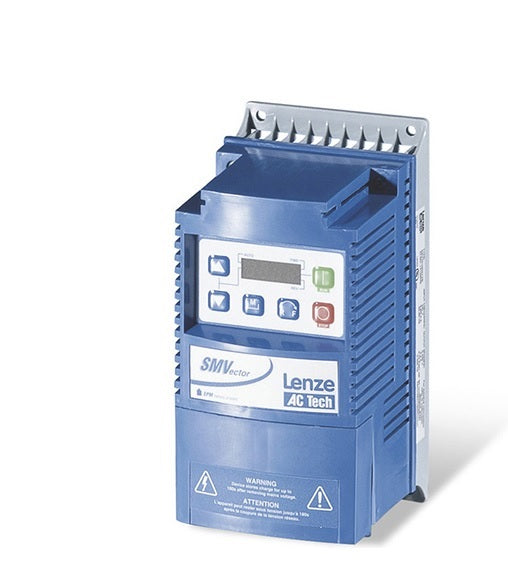

ESV402N04TXB, Lenze, 5 Hp, 480V, 3Ph Nema1, 174625.00, VFD, Drives,

PRODUCT DETAILS

SMV Series VectorDrive
NEMA 1
400/480 Volt Three Phase Input
5 hp Power Rating
9.4/8.2 A Output Current

DESCRIPTION

The SMVector drive delivers unparalleled performance and simplicity. The SMVector drive is the right choice when you need it all – performance, power, packaging and intuitive programming.

APPLICATIONS

Food processing machinery
Packaging machinery
Material handling
Conveying systems
HVAC systems

FEATURES

NEW sequencer function
V/Hz through vector control
Up to 60 hp
NEMA® 1 and NEMA® 4X enclosures
Flexible power ranges
Industrial grade packaging
Intuitive user interface
Electronic programming module
Exceptional starting torque
Load: constant torque or variable torque
Dynamic speed regulation
Quick acceleration
Two-year warranty
Original Integrated EMC Filters are available on NEMA® 4X drives to meet CE regulations

SPECIFICATIONS

ENCLOSURE	NEMA 1
EMC FILTER	No
INPUT PHASE	Three Phase
INPUT VOLTAGE	400/480
INSTALLED I/O & COMMUNICATION MODULE	No Communications Installed / Standard Keypad
HORSEPOWER CONSTANT TORQUE	5 hp
PHASE	Three Phase

INVERTER OR VECTOR DUTY	Vector Duty
LOAD TYPE	Constant Torque, Variable Torque
INTEGRATED LINE DISCONNECT	No
CONTROL SERIES	SMV
OUTPUT CURRENT CONTINUOUS AMPS	8.2 A, 9.4 A
POWER RATING	5 hp
WEIGHT	4.4 LB
