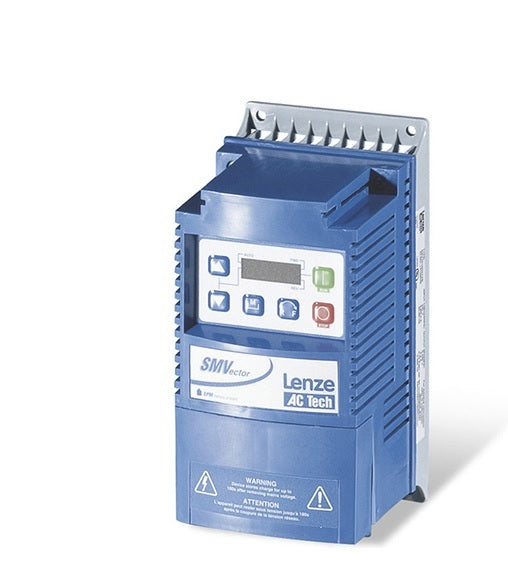

ESV402N02TXB, Lenze, 5 Horse Power, 240V, 3Ph Nema1, 174615.00, Drives
ESV402N02TXB, Lenze, 5 Hp, 240V, 3Ph Nema1, 174615.00, VFD, Drives,
PRODUCT DETAILS
- SMV Series Vctor Drive
- NEMA 1
- 240 Volt Three Phase Input
- 5 hp Power Rating
- 16.5 A Output Current
DESCRIPTION
- The SMVctor drive delivers unparalleled performance and simplicity. The SMVctor drive is the right choice when you need it all – performance, power, packaging and intuitive programming.
APPLICATIONS
- Food processing machinery
- Packaging machinery
- Material handling
- Conveying systems
- HVAC systems
FEATURES
- NEW sequencer function
- V/Hz through control
- Up to 60 hp
- NEMA® 1 and NEMA® 4X enclosures
- Flexible power ranges
- Industrial grade packaging
- Intuitive user interface
- Electronic programming module
- Exceptional starting torque
- Load: constant torque or variable torque
- Dynamic speed regulation
- Quick acceleration
- Two-year warranty
- Original Integrated EMC Filters are available on NEMA® 4X drives to meet CE regulations
SPECIFICATIONS
| HORSEPOWER CONSTANT TORQUE | 5 horse power |
| INPUT VOLTAGE | 240 |
| INVERTER OR VCTOR DUTY | Vctor Duty |
| INSTALLED I/O & COMMUNICATION MODULE | No Communications Installed / Standard Keypad |
| POWER RATING | 5 horse power |
| CONTROL SERIES | SMV |
| INPUT PHASE | Three Phase |
| OUTPUT CURRENT CONTINUOUS AMPS | 16.5 A |
| LOAD TYPE | Constant Torque, Variable Torque |
| PHASE | Three Phase |
| INTEGRATED LINE DISCONNECT | No |
| ENCLOSURE | NEMA 1 |
| EMC FILTER | No |
| WEIGHT | 4.4 LB |
