BALDOR | SKU:
EMN-019509

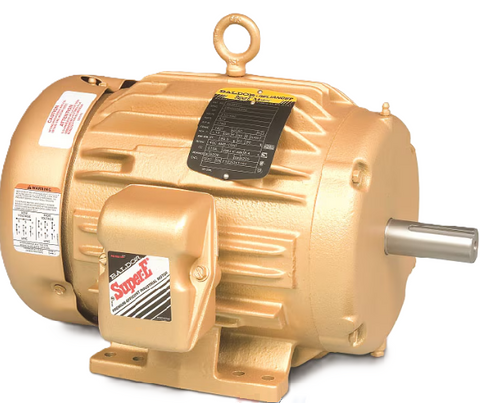

EM3665T-5, Baldor, 5Hp, 1750RPM, 184T, TEFC, 575V, General Purpose
Regular price
$1,218.14
Unit price
/
Unavailable
EM3665T-5, Baldor, 5Hp, 1750RPM, 184T, TEFC, 575V, General Purpose is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
EM3665T-5, Baldor, 5Hp, 1750RPM, 184T, TEFC, 575V, General Purpose
Regular price
$1,218.14
Unit price
/
Unavailable
Description
Description
EM3665T-5, Baldor, 5Hp, 1750RPM, 184T, TEFC, 575V, General Purpose

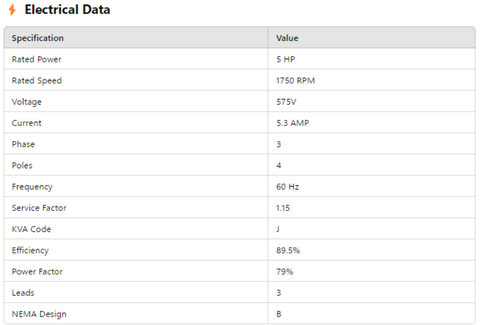

| Electrical Data | |
| Specification | Value |
| Rated Power | 5 HP |
| Rated Speed | 1750 RPM |
| Voltage | 575V |
| Current | 5.3 AMP |
| Phase | 3 |
| Poles | 4 |
| Frequency | 60 Hz |
| Service Factor | 1.15 |
| KVA Code | J |
| Efficiency | 89.5% |
| Power Factor | 79% |

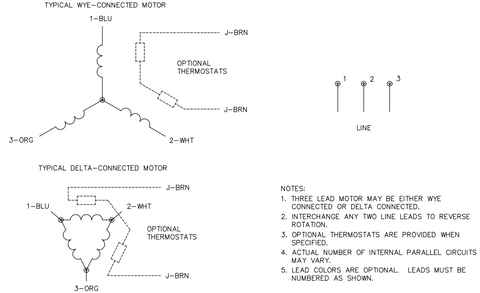

| Leads | 3 |
| NEMA Design | B |

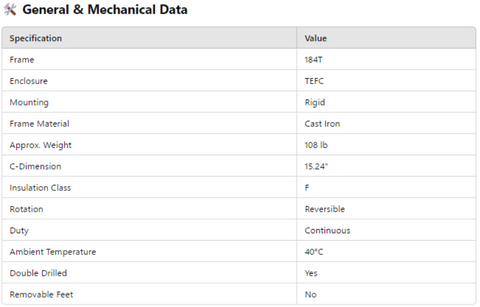

| General & Mechanical Data | |
| Specification | Value |
| Frame | 184T |
| Enclosure | TEFC |
| Mounting | Rigid |
| Frame Material | Cast Iron |
| Approx. Weight | 108 lb |
| C-Dimension | 15.24" |
| Insulation Class | F |
| Rotation | Reversible |
| Duty | Continuous |
| Ambient Temperature | 40°C |
| Double Drilled | Yes |
| Removable Feet | No |

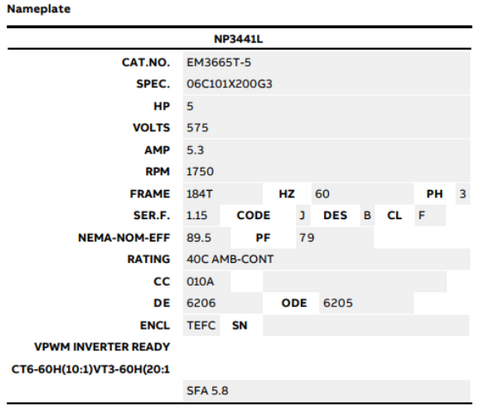

| Spec | 06C101X200G3 |
| Shaft & Bearing Data | |
| Specification | Value |
| DE Bearing | 6206 |
| NDE Bearing | 6205 |
| Shaft Diameter | 1.125" |
| Shaft Length | 2.75" |
| Grease Type | Polyrex EM |
| Greaseable | Yes |
