DELTA ELECTRONICS  |  SKU: EMN-018701

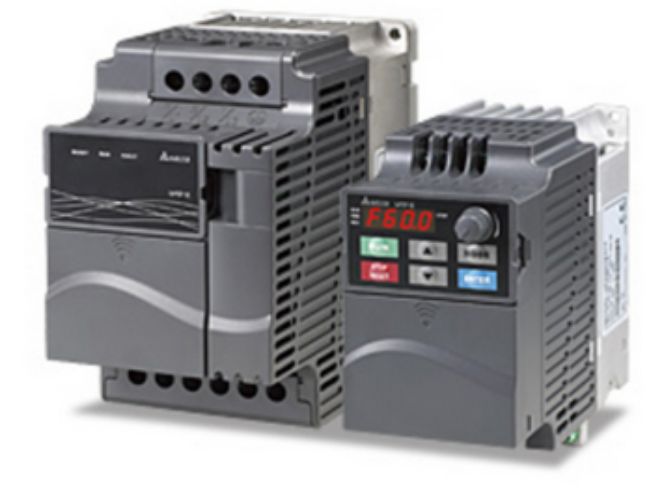

E-VFD055E43A, (E Series) 7.5Hp 5.5kW (CT 13A) / 10Hp 7.5kW (VT 15.6A), 3 Ø 460VAC, 0-599.00Hz (o/p), (V/Hz, SVC, VC+PG), c/w EMI Filter & PLC, IP20, Frame C

$808.92
shipping

Estimate shipping

Description

E-VFD055E43A, (E Series) 7.5Hp 5.5kW (CT 13A) / 10Hp 7.5kW (VT 15.6A), 3 Ø 460VAC, 0-599.00Hz (o/p), (V/Hz, SVC, VC+PG), c/w EMI Filter & PLC, IP20, Frame C

Equivalent : Delta MS-VFD13AMS43ANSAA & C-VFD055C43A-21

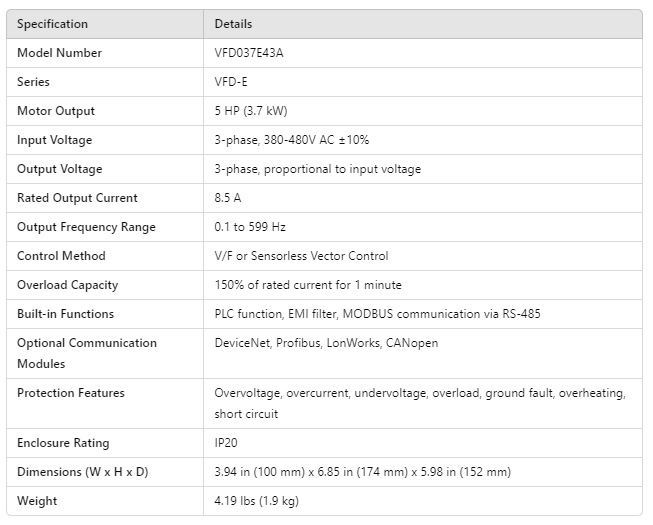

Specification Details
Model Number VFD037E43A
Series VFD-E
Motor Output 5 HP (3.7 kW)
Input Voltage 3-phase, 380-480V AC ±10%
Output Voltage 3-phase, proportional to input voltage
Rated Output Current 8.5 A
Output Frequency Range 0.1 to 599 Hz
Control Method V/F or Sensorless Vector Control
Overload Capacity 150% of rated current for 1 minute
Built-in Functions PLC function, EMI filter, MODBUS communication via RS-485
Optional Communication Modules DeviceNet, Profibus, LonWorks, CANopen
Protection Features Overvoltage, overcurrent, undervoltage, overload, ground fault, overheating, short circuit
Enclosure Rating IP20
Dimensions (W x H x D) 3.94 in (100 mm) x 6.85 in (174 mm) x 5.98 in (152 mm)
Weight 4.19 lbs (1.9 kg)
