WEG  |  SKU: EMN-019051

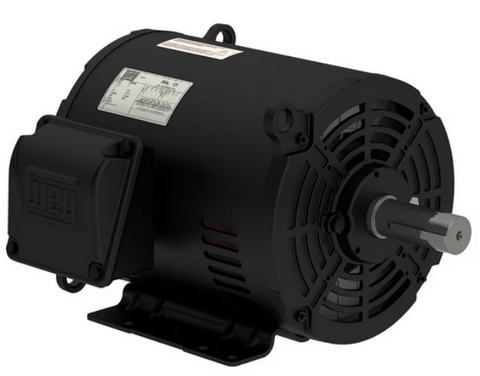

DP025502NPW01, Rolled Steel NEMA Premium Efficiency 25Hp 3530 Rpm 2P 254/6T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$2,260.66
shipping

Estimate shipping

Description

DP025502NPW01,  Rolled Steel NEMA Premium Efficiency 25Hp 3530 Rpm 2P 254/6T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

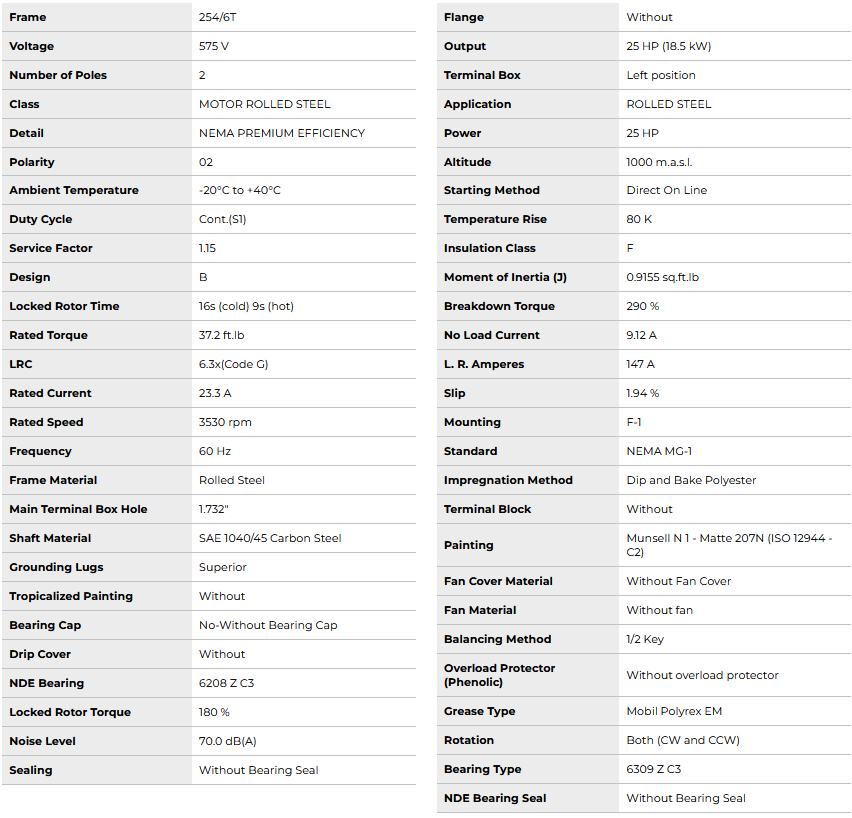

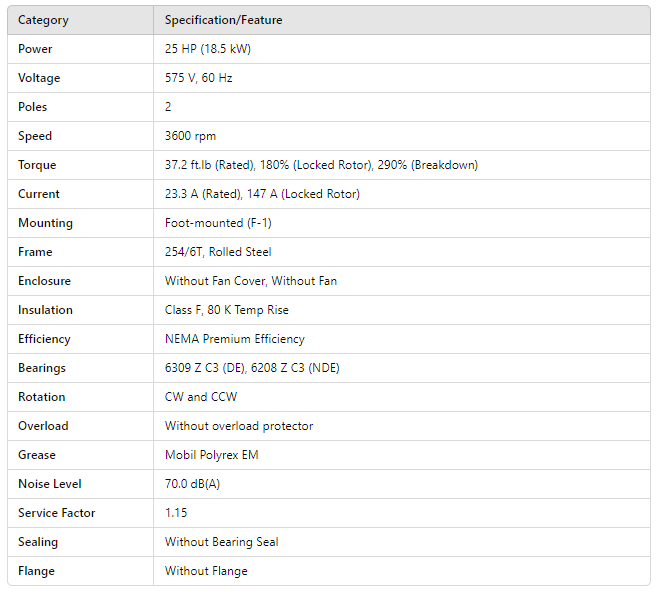

Category Specification/Feature
Power 25 HP (18.5 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 37.2 ft.lb (Rated), 180% (Locked Rotor), 290% (Breakdown)
Current 23.3 A (Rated), 147 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 254/6T, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Efficiency NEMA Premium Efficiency
Bearings 6309 Z C3 (DE), 6208 Z C3 (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 70.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without Flange
