WEG  |  SKU: EMN-019043

DP015502NPW01, Rolled Steel NEMA Premium Efficiency 15Hp 3535 Rpm 2P 213/5T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$1,496.51
shipping

Estimate shipping

Description

DP015502NPW01,  Rolled Steel NEMA Premium Efficiency 15Hp 3535 Rpm 2P 213/5T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

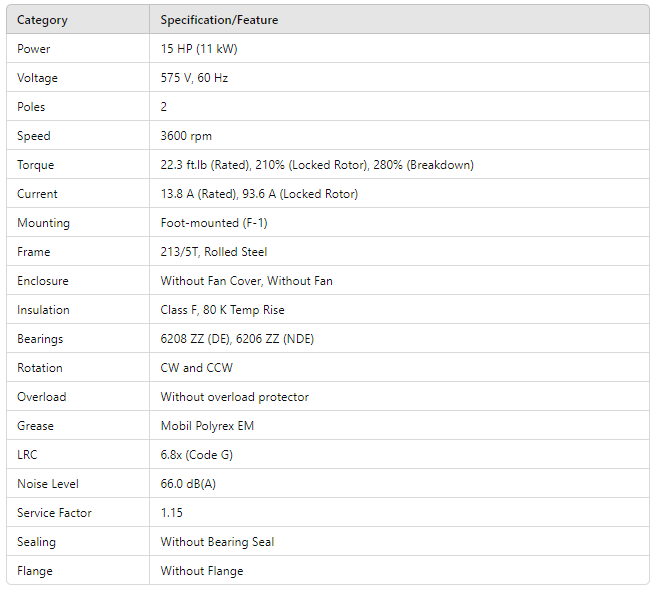

Category Specification/Feature
Power 15 HP (11 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 22.3 ft.lb (Rated), 210% (Locked Rotor), 280% (Breakdown)
Current 13.8 A (Rated), 93.6 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 213/5T, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6208 ZZ (DE), 6206 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
LRC 6.8x (Code G)
Noise Level 66.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without Flange
