WEG  |  SKU: EMN-019044

DP015404NPW01, Rolled Steel NEMA Premium Efficiency 15Hp 1775 Rpm 4P 254/6T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

$1,631.76
shipping

Estimate shipping

Description

DP015404NPW01,  Rolled Steel NEMA Premium Efficiency 15Hp 1775 Rpm 4P 254/6T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

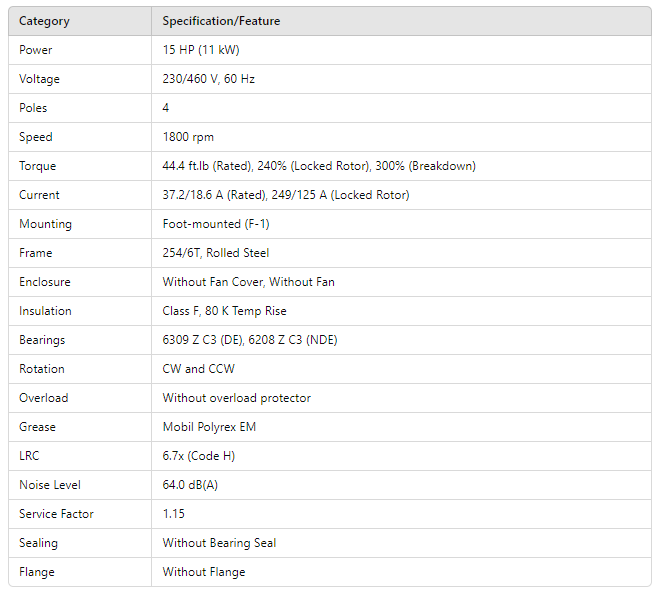

Category Specification/Feature
Power 15 HP (11 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 44.4 ft.lb (Rated), 240% (Locked Rotor), 300% (Breakdown)
Current 37.2/18.6 A (Rated), 249/125 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 254/6T, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6309 Z C3 (DE), 6208 Z C3 (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
LRC 6.7x (Code H)
Noise Level 64.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without Flange
