WEG  |  SKU: EMN-019035

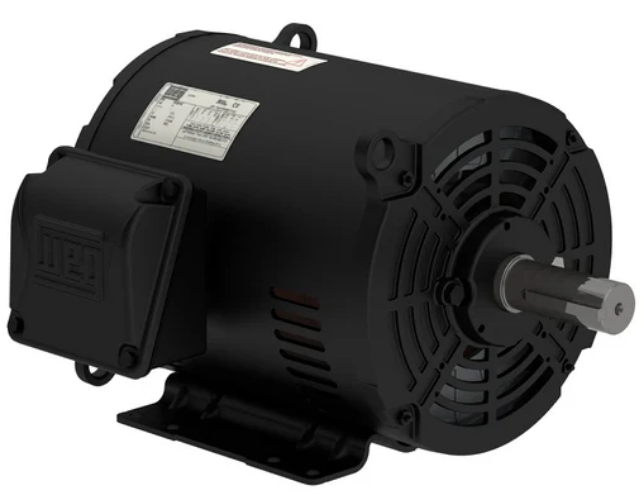

DP007504NPW01, Rolled Steel NEMA Premium Efficiency 7.5Hp 1770 Rpm 4P 213/5T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$969.04
shipping

Estimate shipping

Description

DP007504NPW01,  Rolled Steel NEMA Premium Efficiency 7.5Hp 1770 Rpm 4P 213/5T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

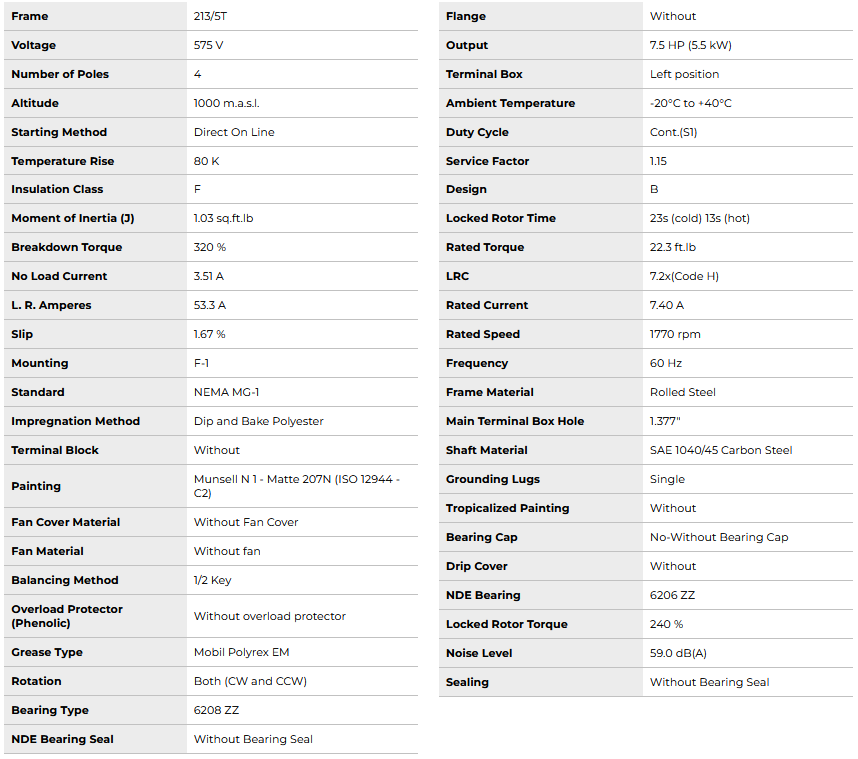

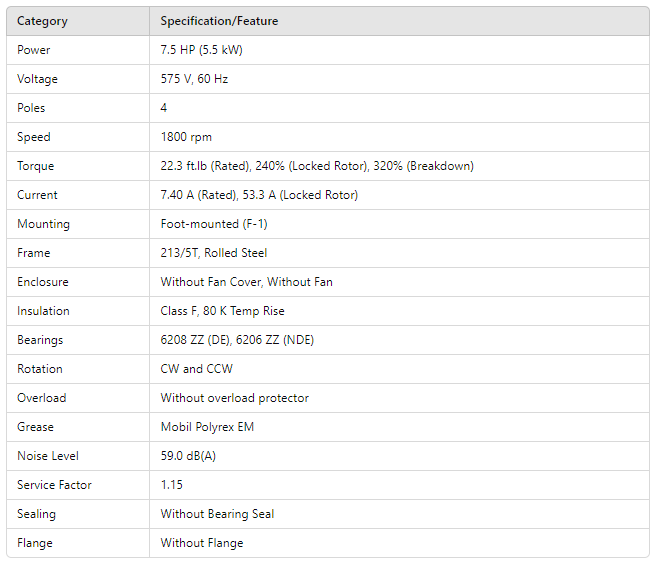

Category Specification/Feature
Power 7.5 HP (5.5 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 22.3 ft.lb (Rated), 240% (Locked Rotor), 320% (Breakdown)
Current 7.40 A (Rated), 53.3 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 213/5T, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6208 ZZ (DE), 6206 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 59.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without Flange
