BALDOR  |  SKU: EMN-019510

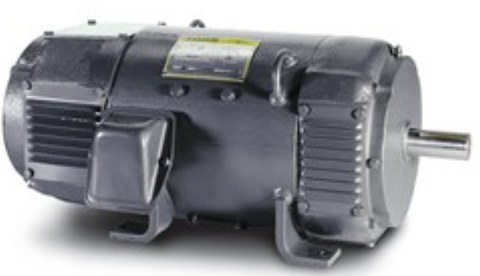

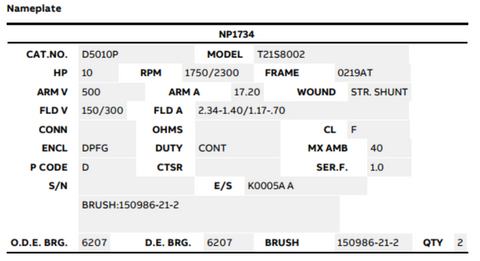

D5010P, 10Hp, Baldor, 1750/2300 Rpm, Arm 500V, Field 150/300V, 0219AT, T21S8002, P21921480148

$17,950.00
shipping

Estimate shipping

Description

D5010P, 10Hp, Baldor, 1750/2300 Rpm, Arm 500V, Field 150/300V, 0219AT, T21S8002, P21921480148

Replacement for: P21921480148

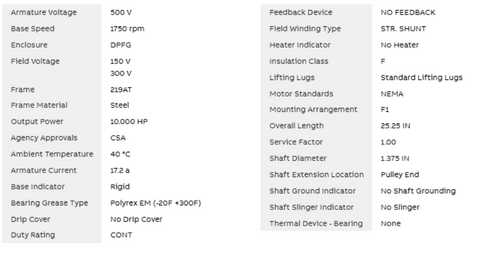

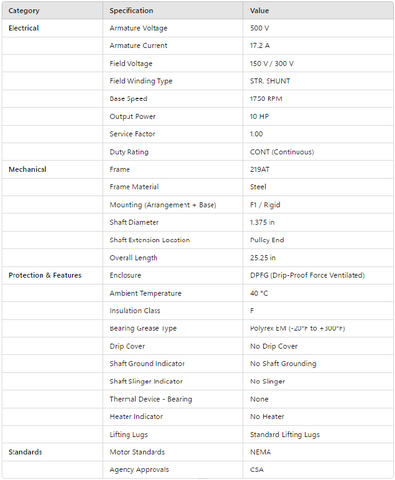

Category Specification Value
Electrical
 Armature Voltage 500 V
Armature Current 17.2 A
Field Voltage 150 V / 300 V
Field Winding Type STR. SHUNT
Base Speed 1750 RPM
Output Power 10 HP
Service Factor 1.00
Duty Rating CONT (Continuous)
Mechanical
 Frame 219AT
Frame Material Steel
Mounting (Arrangement + Base) F1 / Rigid
Shaft Diameter 1.375 in
Shaft Extension Location Pulley End
Overall Length 25.25 in
Protection & Features
 Enclosure DPFG (Drip-Proof Force Ventilated)
Ambient Temperature 40 °C
Insulation Class F
Bearing Grease Type Polyrex EM (-20°F to +300°F)
Drip Cover No Drip Cover
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Thermal Device - Bearing None
Heater Indicator No Heater
Lifting Lugs Standard Lifting Lugs
Standards
 Motor Standards NEMA
Agency Approvals CSA



Features

High quality ball bearing motors with precision machined die cast aluminum or steel housings, Dynamically balanced for smooth vibration-free operation.

Common Industries

  • Plastics
  • Printing
  • Packaging

Common Applications

  • General purpose including conveyors
  • Material handling equipment
  • Packaging machinery
