D13P2AH, 1/3Hp, 1725 RPM, 208-230/460V, 3PH, 60Hz, ODP, Fr. 56H, P063BBN1405015B

D13P2AH, 1/3Hp, 1725 RPM, 208-230/460V, 3PH, 60Hz, ODP, Fr. 56H, P063BBN1405015B

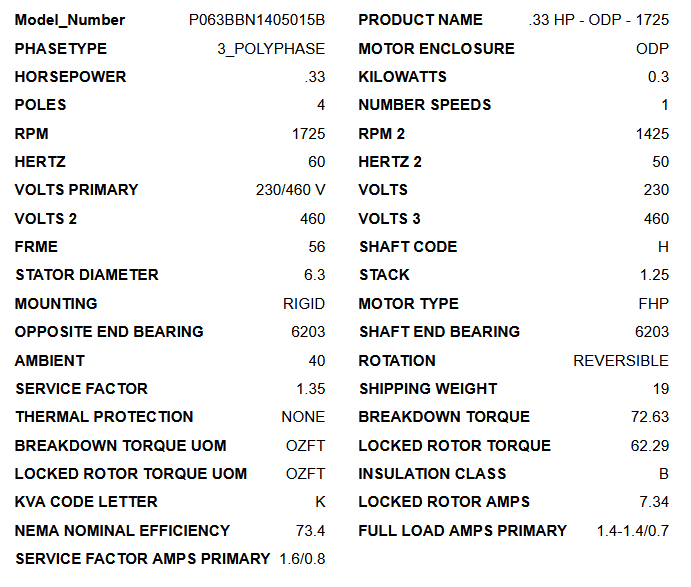

KEY FEATURES

• Model Number: P063BBN1405015B

• Output: 1/3 HP (0.3 kW)

• RPM: 1725 (60 Hz) / 1425 (50 Hz)

• Voltage: 230/460 V

• Phase: 3

• Poles: 4

• Frequency: 60 / 50 Hz

• Frame: 56

• Mounting: Rigid

• Enclosure: ODP

• Service Factor: 1.35

• Ambient Temperature: 40°C

• Insulation Class: B

• Efficiency: 73.4 %

• Rotation: Reversible

• Locked Rotor Torque: 62.29 oz.ft

• Breakdown Torque: 72.63 oz.ft

• Full Load Amps: 1.4-1.4 / 0.7 A

• Thermal Protection: None
