CT025408NPW22, W22 NEMA Premium Efficiency 25Hp 880 RPM 8P 324/6TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

CT025408NPW22,  W22 NEMA Premium Efficiency 25Hp 880 RPM 8P 324/6TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

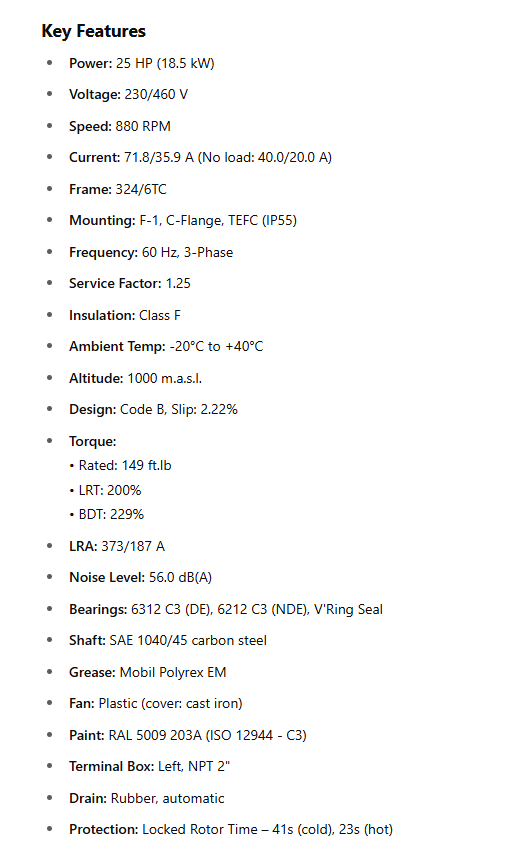

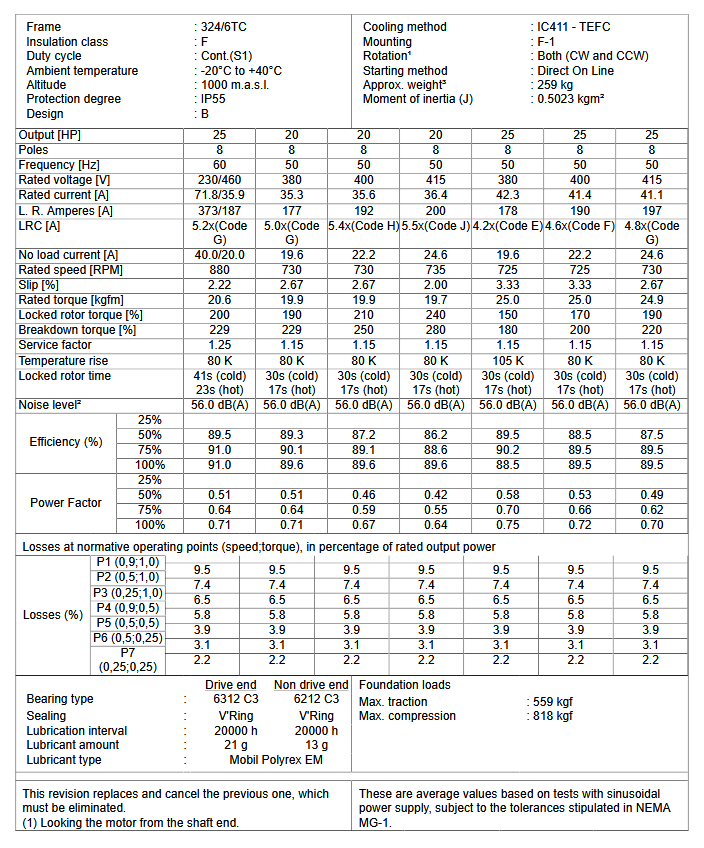

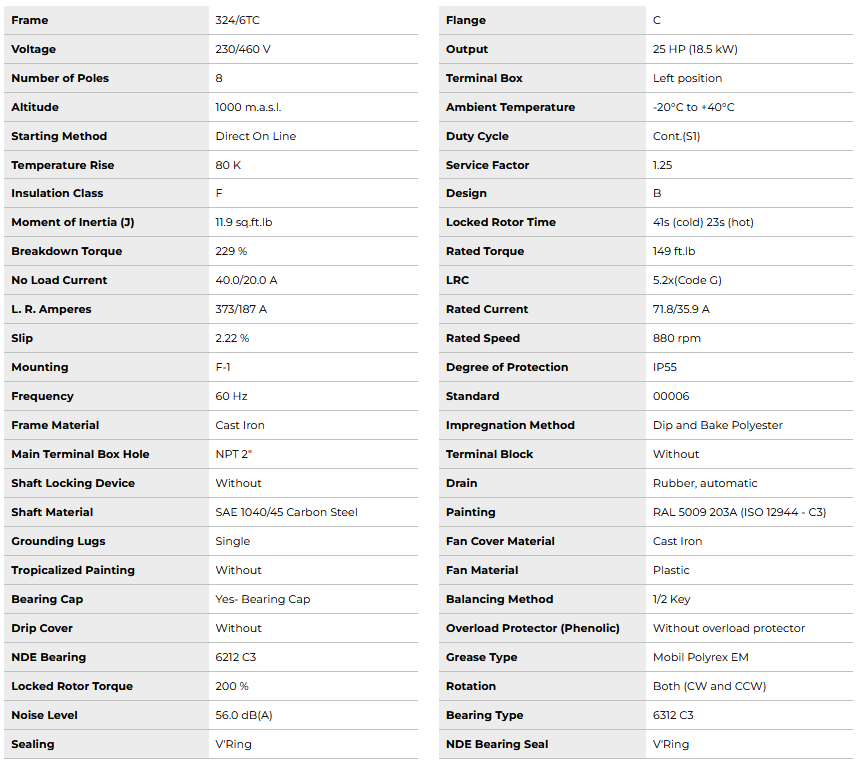

Key Features

• Power: 25 HP (18.5 kW)

• Voltage: 230/460 V

• Speed: 880 RPM

• Current: 71.8/35.9 A (No load: 40.0/20.0 A)

• Frame: 324/6TC

• Mounting: F-1, C-Flange, TEFC (IP55)

• Frequency: 60 Hz, 3-Phase

• Service Factor: 1.25

• Insulation: Class F

• Ambient Temp: -20°C to +40°C

• Altitude: 1000 m.a.s.l.

• Design: Code B, Slip: 2.22%

• Torque:
  • Rated: 149 ft.lb
  • LRT: 200%
  • BDT: 229%

• LRA: 373/187 A

• Noise Level: 56.0 dB(A)

• Bearings: 6312 C3 (DE), 6212 C3 (NDE), V'Ring Seal

• Shaft: SAE 1040/45 carbon steel

• Grease: Mobil Polyrex EM

• Fan: Plastic (cover: cast iron)

• Paint: RAL 5009 203A (ISO 12944 - C3)

• Terminal Box: Left, NPT 2"

• Drain: Rubber, automatic

• Protection: Locked Rotor Time – 41s (cold), 23s (hot)
