E-Motor Nations  |  SKU: EMN-018612

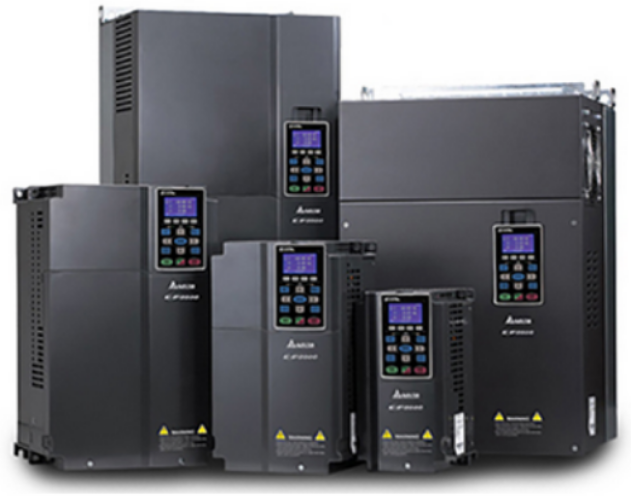

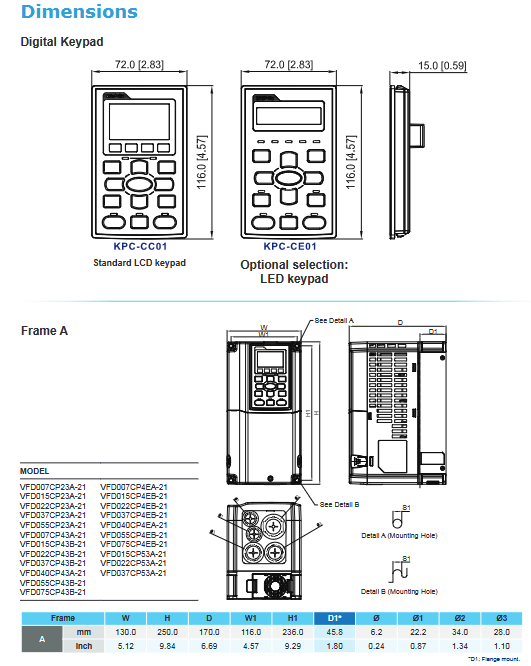

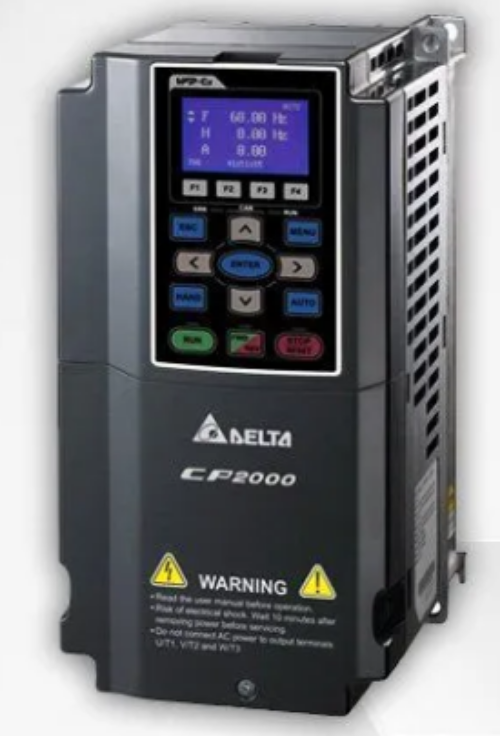

CP-VFD015CP53A-21, (CP2000) 1Hp (ND 2.5A) / 2Hp (LD 3A), 3 Ø 575VAC, 0-599.00Hz (o/p), (V/Hz, SVC, PM, STO), c/w PLC, Pump & Fan Macro & BACnet, NEMA 1, Frame A

$1,019.47
shipping

Estimate shipping

Description

CP-VFD015CP53A-21, (CP2000) 1Hp (ND 2.5A) / 2Hp (LD 3A), 3 Ø 575VAC, 0-599.00Hz (o/p), (V/Hz, SVC, PM, STO), c/w PLC, Pump & Fan Macro & BACnet, NEMA 1, Frame A

Equivalent : Delta C-VFD022C53A-21 & MS-VFD3A0MS53ANSAA

Table 1: Specifications
Control Methods - Volt/Hertz
- Position, Torque
- Sensorless Vector, FOC
- Closed Loop Vector Control
Motor Compatibility - Induction Motors (IM)
- Interior Permanent Magnet Motors (IPM)
- Surface Permanent Magnet Motors (SPM)
Ratings - Constant and Variable Torque rated
- 230/460VAC: Normal & Heavy Duty
- 575/690VAC: Light, Normal & Heavy Duty
Voltage Options - 230Vac 3-phase input/output (HD 1 ~ 125HP)
- 460Vac 3-phase input/output (HD 1 ~ 600HP)
- 575/690Vac 3-phase input, 460Vac 3-phase output (HD 1/4 ~ 500HP)
Programmable Speed Range - 0.01 ~ 599Hz (Light & Normal Duty)
- 0.00 ~ 300Hz (Heavy Duty)
Torque Control - 150% starting torque at low speeds
- 4 quadrant torque control & limit
Protection and Safety - Conformal coated circuit boards (IEC60721-3-3, class 3C2)
- Adaptable to 50°C environment
- Power removal safety (Safe Torque Off) for Emergency Stop
Built-in Functions - Realtime clock & calendar
- Built-in 10K step capacity PLC
- Dynamic braking transistors (frames A, B, C)



Table 2: Features and Connectivity
Inputs - 12 Digital Inputs (4 dedicated, 8 programmable)
- 3 Analog Inputs (0 ~ 10V, -10 ~ +10V, 0 ~ 20mA, 4 ~ 20mA, PTC thermistor, RTD PT100)
Optional Digital I/Os - Up to 6 DI & 6 relays (Total: 10 DI / 6 DO)
Optional Analog I/Os - +2 Analog In / 2 Analog Out (Total: 4 AI / 3 AO)
Outputs - 2 Dry Contact Relays (1 NO, 1 NC)
- 2 Open Collector Transistors
- 1 Digital Frequency Output
- 1 Analog Output (0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA)
Communication - 2 RS-485 Serial Ports (2 RJ-45)
- Resident Protocols: CANopen, Modbus RTU & ASCII
- Optional Protocols: Profibus DP, DeviceNet, Modbus TCP, Ethernet/IP, CANopen
Option Card Slots - 3 Slots: 1 for I/O cards, 1 for PG Feedback, 1 for Communication cards
Keypad - Removable IP66-rated Keypad
