CL3405, Baldor, .33Hp, 115/208-230V, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

E-Motor Nations

$592.46

CL3405, Baldor .33Hp, 115/208-230V, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

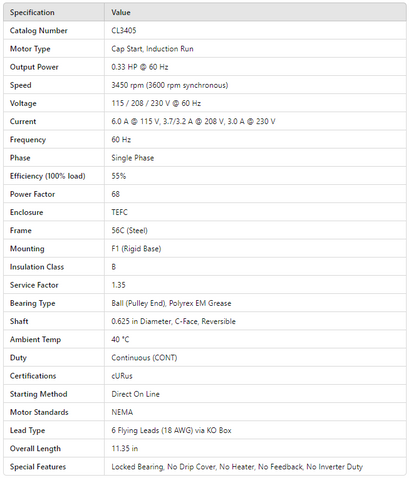

Specification	Value
Catalog Number	CL3405
Motor Type	Cap Start, Induction Run
Output Power	0.33 HP @ 60 Hz
Speed	3450 rpm (3600 rpm synchronous)
Voltage	115 / 208 / 230 V @ 60 Hz
Current	6.0 A @ 115 V, 3.7/3.2 A @ 208 V, 3.0 A @ 230 V
Frequency	60 Hz
Phase	Single Phase
Efficiency (100% load)	55%
Power Factor	68
Enclosure	TEFC
Frame	56C (Steel)
Mounting	F1 (Rigid Base)
Insulation Class	B
Service Factor	1.35
Bearing Type	Ball (Pulley End), Polyrex EM Grease
Shaft	0.625 in Diameter, C-Face, Reversible
Ambient Temp	40 °C
Duty	Continuous (CONT)
Certifications	cURus
Starting Method	Direct On Line
Motor Standards	NEMA
Lead Type	6 Flying Leads (18 AWG) via KO Box

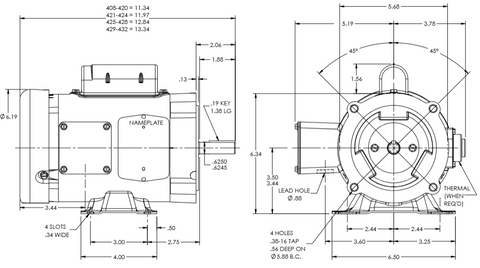

Overall Length	11.35 in
Special Features	Locked Bearing, No Drip Cover, No Heater, No Feedback, No Inverter Duty
