CFW300A06P0S2NB20, CFW320A07P3S2NB20, CFW320A06P0T2NB20,

CFW320A07P3S2NB20, Size A 7.3A Single-phase 200-240 V Standard without braking IP20

E-Motor Nations

$611.61

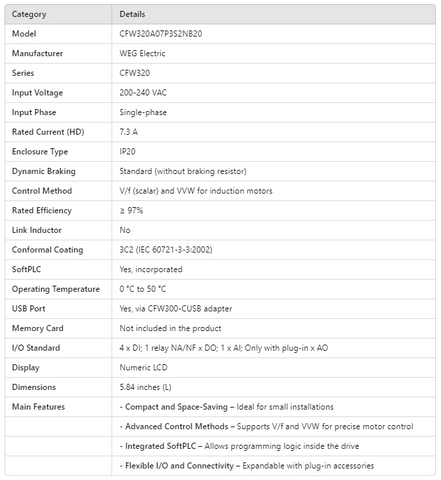

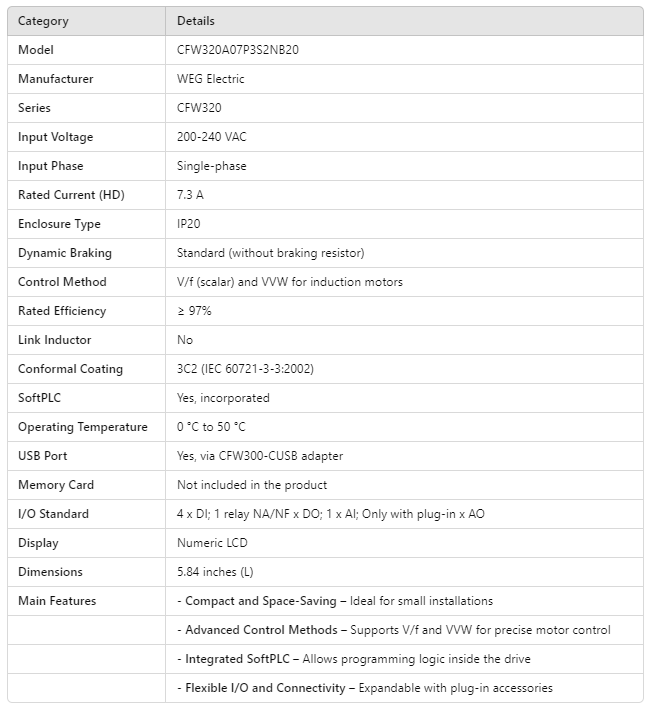

Category	Details
Model	CFW320A07P3S2NB20
Manufacturer	WEG Electric
Series	CFW320
Input Voltage	200-240 VAC
Input Phase	Single-phase
Rated Current (HD)	7.3 A
Enclosure Type	IP20
Dynamic Braking	Standard (without braking resistor)
Control Method	V/f (scalar) and VVW for induction motors
Rated Efficiency	≥ 97%
Link Inductor	No
Conformal Coating	3C2 (IEC 60721-3-3:2002)
SoftPLC	Yes, incorporated
Operating Temperature	0 °C to 50 °C
USB Port	Yes, via CFW300-CUSB adapter
Memory Card	Not included in the product
I/O Standard	4 x DI; 1 relay NA/NF x DO; 1 x AI; Only with plug-in x AO
Display	Numeric LCD
Dimensions	5.84 inches (L)
Main Features	- Compact and Space-Saving – Ideal for small installations
	- Advanced Control Methods – Supports V/f and VVW for precise motor control
	- Integrated SoftPLC – Allows programming logic inside the drive
	- Flexible I/O and Connectivity – Expandable with plug-in accessories
