CF-H15, CF Series Speed Sensor/Pick-up Kit for 56C Frame Motors (15 PPR)

CF-H15, CF Series Speed Sensor/Pick-up Kit for 56C Frame Motors (15 PPR)

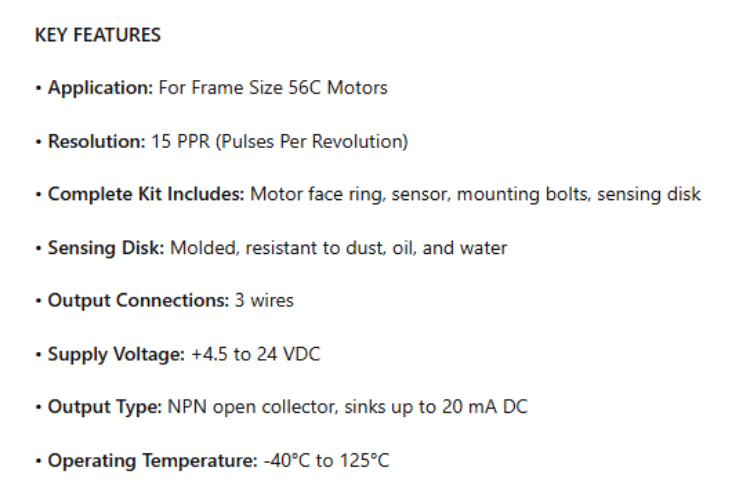

KEY FEATURES

• Application: For Frame Size 56C Motors

• Resolution: 15 PPR (Pulses Per Revolution)

• Complete Kit Includes: Motor face ring, sensor, mounting bolts, sensing disk

• Sensing Disk: Molded, resistant to dust, oil, and water

• Output Connections: 3 wires

• Supply Voltage: +4.5 to 24 VDC

• Output Type: NPN open collector, sinks up to 20 mA DC

• Operating Temperature: -40°C to 125°C

For applications where location of an accessible shaft is difficult or more pulses/revolution are needed, Dart also offers a variety of sensors that rely on different sensing
technologies. These include the CF Series (hall-effect motor C-face mount and the OPU (optical). With this sensor lineup, customers are able to monitor actual motor speed, verify motor rotation and determine location of motor driven devices such as spray application
heads and material handling system carriers. Signals are fed to closed loop motor drives (MD/ASP Series from Dart), plc’s and SCADA systems.
