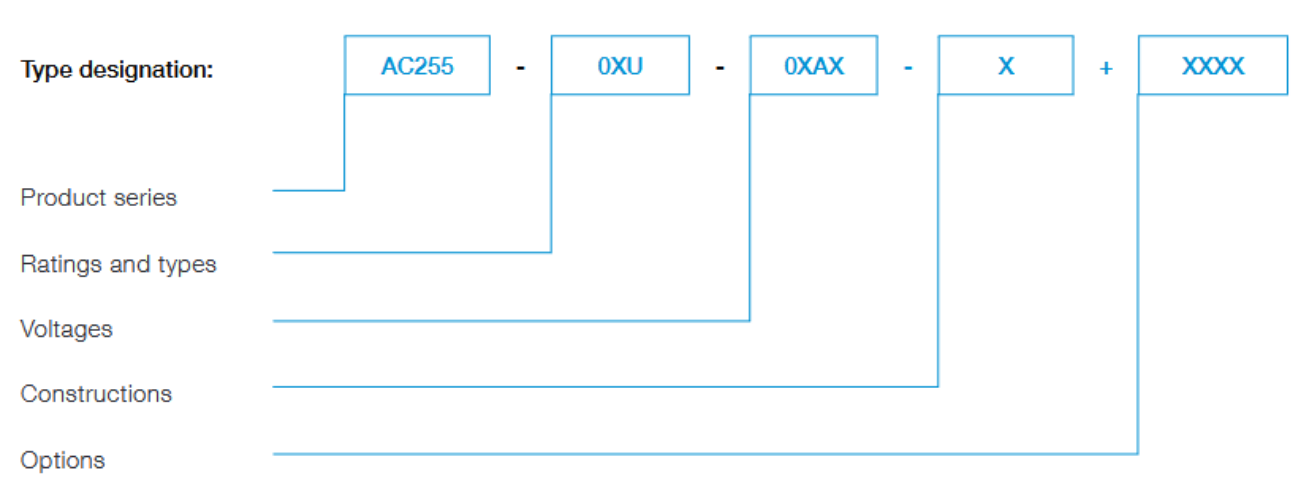

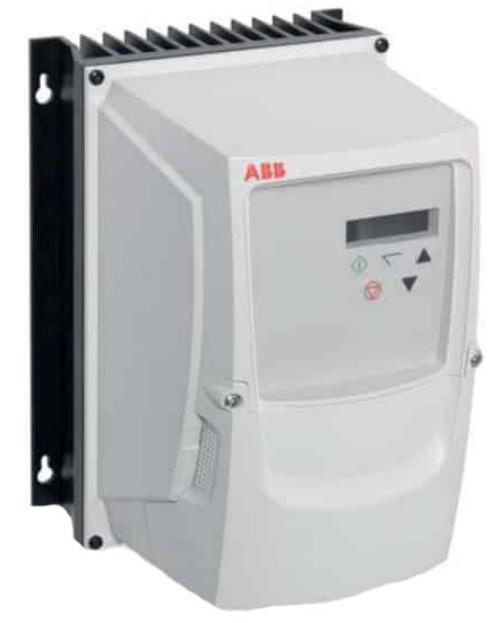

ACS255-03U-02A1-6+B068, ABB ACS255 1Hp 2.1A 500/600V IP66 Nema 4X

E-Motor Nations

$1,484.74

Replace : ACS255-03U-02A1-6+B063

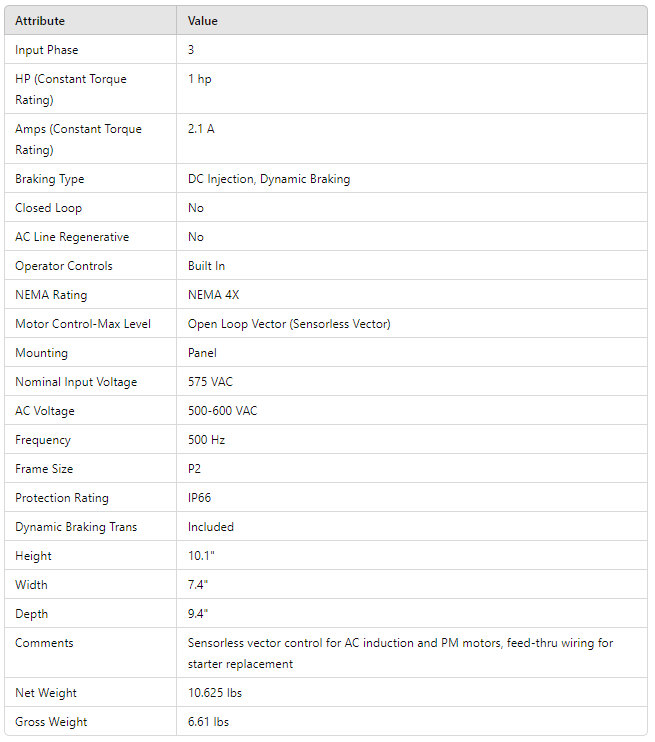

Attribute	Value
Input Phase	3
HP (Constant Torque Rating)	1 hp
Amps (Constant Torque Rating)	2.1 A
Braking Type	DC Injection, Dynamic Braking
Closed Loop	No
AC Line Regenerative	No
Operator Controls	Built In
NEMA Rating	NEMA 4X
Motor Control-Max Level	Open Loop Vector (Sensorless Vector)
Mounting	Panel
Nominal Input Voltage	575 VAC
AC Voltage	500-600 VAC
Frequency	500 Hz

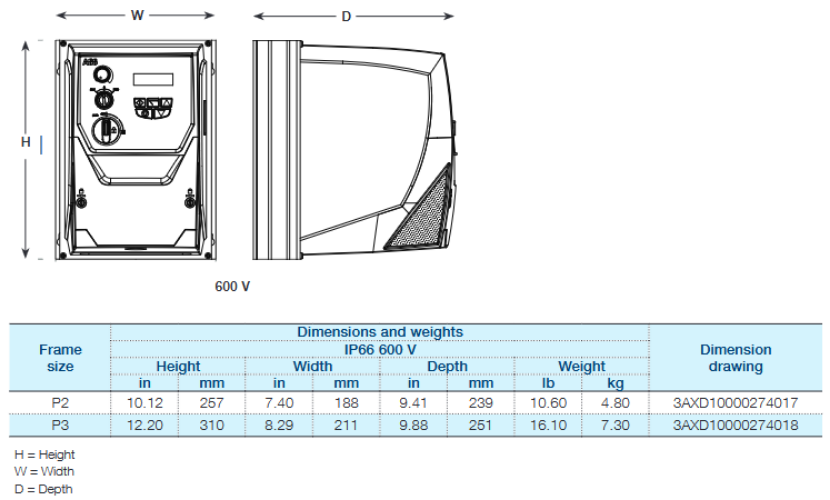

Frame Size	P2
Protection Rating	IP66
Dynamic Braking Trans	Included
Height	10.1"
Width	7.4"
Depth	9.4"
Comments	Sensorless vector control for AC induction and PM motors, feed-thru wiring for starter replacement
Net Weight	10.625 lbs
Gross Weight	6.61 lbs
