9590, (KBVF-45/SIVFR) Hybrid AC Drive 3Hp 4.6A 460V 3PH Input 460V 3PH Ouput IP20 Chassis W/ SIVFR Signal Input Isolation Run/Fault Output Relay

E-Motor Nations

$736.20

9590, (KBVF-45/SIVFR) Hybrid AC Drive 3Hp 4.6A 460V 3PH Input 460V 3PH Ouput IP20 Chassis W/ SIVFR Signal Input Isolation Run/Fault Output Relay

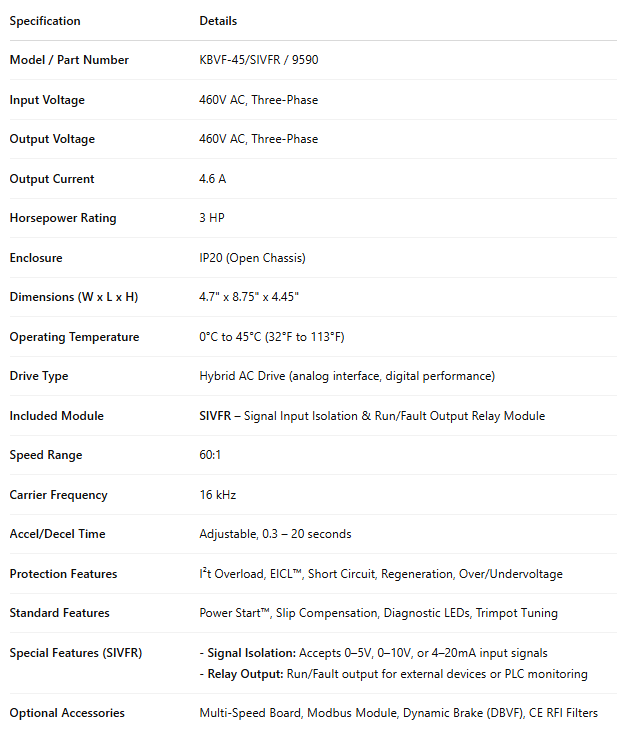

Specification	Details
Model / Part Number	KBVF-45/SIVFR / 9590
Input Voltage	460V AC, Three-Phase
Output Voltage	460V AC, Three-Phase
Output Current	4.6 A
Horsepower Rating	3 HP
Enclosure	IP20 (Open Chassis)
Dimensions (W x L x H)	4.7" x 8.75" x 4.45"
Operating Temperature	0°C to 45°C (32°F to 113°F)
Drive Type	Hybrid AC Drive (analog interface, digital performance)
Included Module	SIVFR – Signal Input Isolation & Run/Fault Output Relay Module
Speed Range	60:1
Carrier Frequency	16 kHz
Accel/Decel Time	Adjustable, 0.3 – 20 seconds
Protection Features	I²t Overload, EICL™, Short Circuit, Regeneration, Over/Undervoltage
Standard Features	Power Start™, Slip Compensation, Diagnostic LEDs, Trimpot Tuning
Special Features (SIVFR)	- Signal Isolation: Accepts 0–5V, 0–10V, or 4–20mA input signals - Relay Output: Run/Fault output for external devices or PLC monitoring
Optional Accessories	Multi-Speed Board, Modbus Module, Dynamic Brake (DBVF), CE RFI Filters

KBVF Hybrid Drive™ – Chassis / IP20

The KBVF Series of Adjustable Frequency Drives are inverter models rated for 1/10 to 5 horsepower motors.
These chassis / IP20 drives are ideal for OEM applications where digital programming and displays are not
required. Hybrid drives are a digital drive with an analog interface.

Options:

Drive-Link™ Programming Kit, SIVFR Signal Isolator and Run Fault Relay (Standard on 460 VAC
models) (P/N 9597), DIVF Modbus Serial Communication Module (P/N 9568), Class A or B (CE) RFI Filter, DBVF
Dynamic Brake Module (P/N 9598), Multi-Speed Board, KBRK Remote Digital Keypad (OEM applications only),
and IOVF Input/Output Multi-Function Module.
